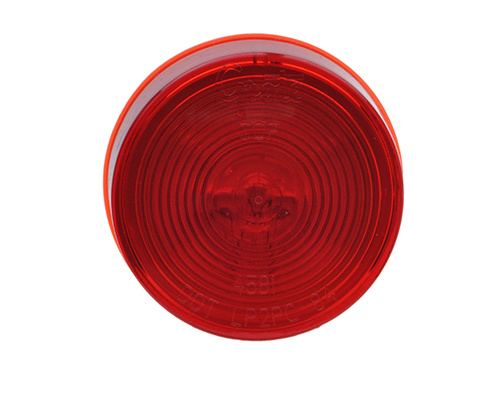

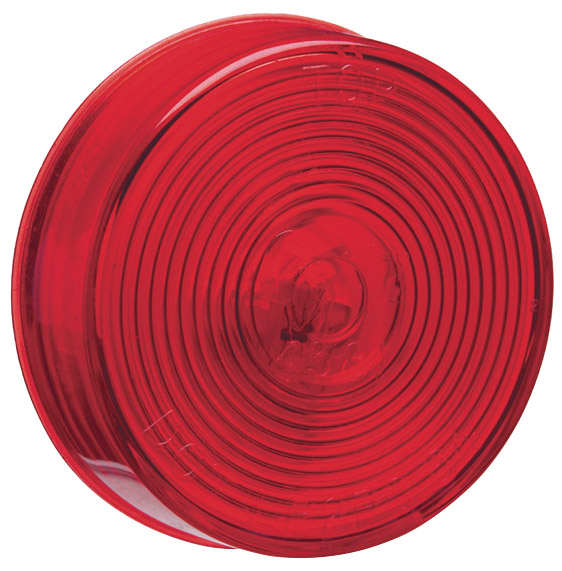

2 1/2" Round Clearance Marker Lights

With twist-on mounting for easy installation, Grote's 2 1/2" Round clearance marker lights fit all popular mounting and grommets.
Grote Loading Ajax Spinner

45812Optic Lens, 12V

45812Optic Lens, 12V

  • 45812 360 thumbnail
  • 45812 thumbnail

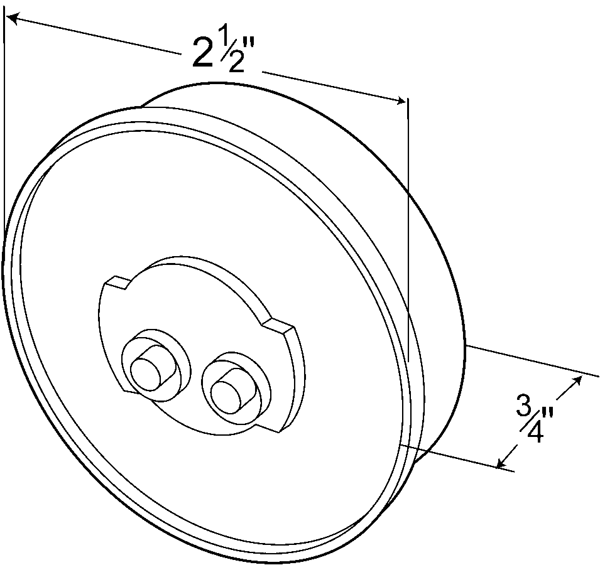

  • 45812 - drawing thumbnail
  • 45812 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

G1032
Hi Count® 2 1/2" LED Clearance Marker Light

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Amperage: .33A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2½"
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: 2 CP
  • VMRS: 034-004-021
  • Diameter: 2.5"
  • Product Type: Clearance Marker
  • Shape: Round
  • Warranty: 1 Year
  • Bulk Pack #45812-3: 48
Features & benefits
  • Features a 12,000+ hour bulb
  • 12-volt version features a 12,000+ hour bulb
  • Hermetic lens to housing seal
  • Optic version only, meets PC function only when mounted at a 45° angle
  • Twist-on mounting for easy installation
  • Fits all popular mountings and grommets
