UltraLink™ Power Cords

Grote UltraLink™ Power Cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations. A special adhesive bonds the cable to the plug, eliminating the need for a supporting spring and preventing moisture from entering the back of the plug. Superior cords that provide maximum reliability in the harshest environments
Grote Loading Ajax Spinner

8702012' w/12" Lead, Coiled, HD

8702012' w/12" Lead, Coiled, HD

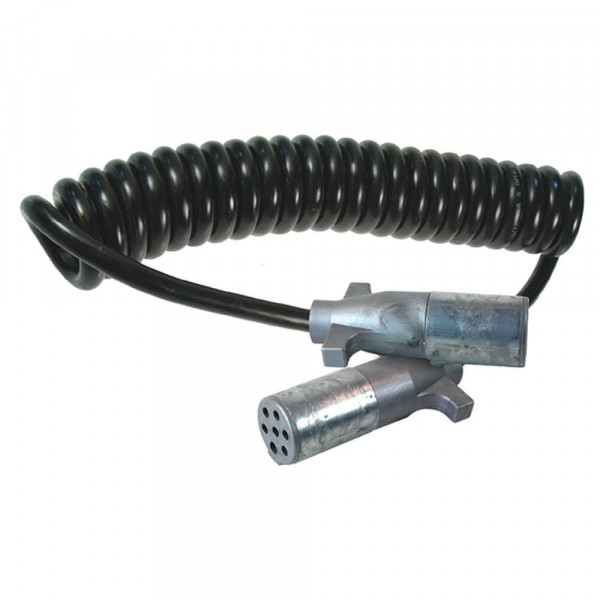

  • UltraLink™ Power Cord, 12' w/12" Lead, Coiled thumbnail

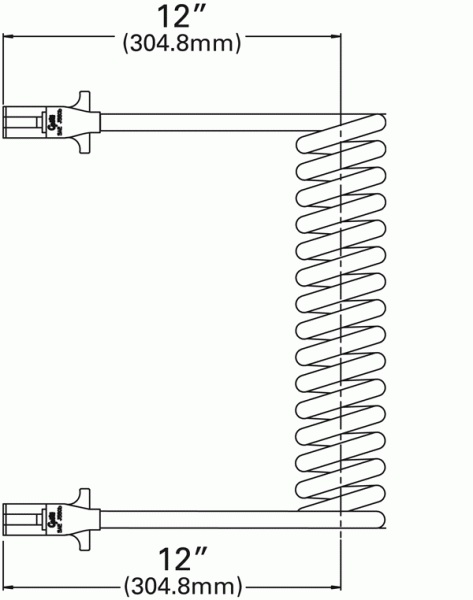

  • 87020 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Black
  • VMRS: 034-003-037
  • Length: 12'
  • Gauge: 6/12 GA, 1/10 GA
  • Standards: J2222, J560
  • Material: EVA
  • Coiled or Straight: Coiled
  • Plug: Straight
  • Leads: 12"
  • Style: Non-ABS
  • Plug / Socket #: 7
  • Operating Temperature: -40°F to +176°F (-40°C to +80°C)
Features & benefits
  • Zinc die-cast plugs filled w/ elastomeric material that resists crushing & acts as potting to seal solid brass terminals from moisture
  • Advanced polymer jacketing material provides complete sealing and abrasion protection between -55°F and 190­°F (Premium Versions)
  • Provides power delivery & exceeds power delivery minimum legal lamp requirements for single/double trailer configurations
  • Adhesive bonds cable to plug, eliminating need for supporting spring & preventing moisture from entering the back of the plug
  • Provides excellent recoil memory, chemical, and abrasion resistance
  • Solid brass terminals are corrosion resistant, and provide superior current capacity with minimal voltage drop
