Ultra Seal G7

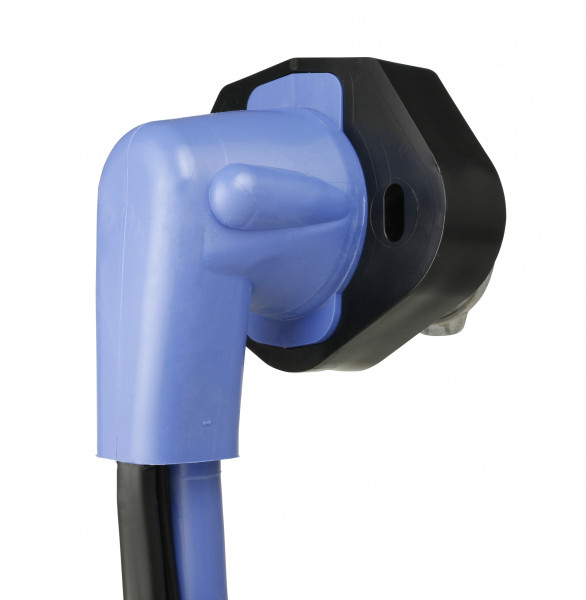

The G7 is available in both 90-degree and straight-in versions to better fit customer applications. Both versions offer a method to seal the back of the receptacle into a molded plug and also offer quick replacement options if needed. The end user has the option to replace only the receptacle, or the entire G7 harness, which is 24 inches long and comes in various sealed termination options. The G7 is a three piece design; the die-cast receptacle, the molded plug and the crush resistant mounting spacer that does not deform if over-torqued when mounting. The plug and spacer work in conjunction to not only seal with the die-cast receptacle, but also with the hole in the trailer wall.
Grote Loading Ajax Spinner

8721090 degree Plug & Receptacle with 7-way Female

8721090 degree Plug & Receptacle with 7-way Female

  • 90 degree Plug & Receptacle with 7-way Female thumbnail
  • 90 degree Plug & Receptacle with standard 0.180 female plugs back thumbnail

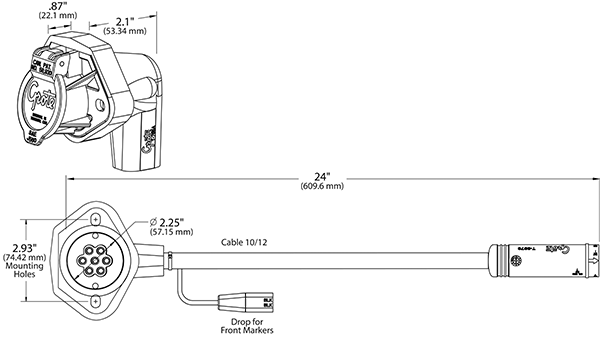

  • 87210 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Zinc die-cast
  • Gauge: 12-10 GA
  • Standards: SAE J560
  • Pack Quantity: 1
  • VMRS: 034-002-036
  • Product Type: Receptacle, Plug
  • Warranty: 5 Years
Features & benefits

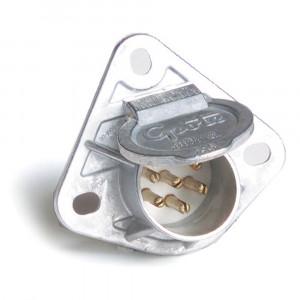

  • Replaceable non-rust, die-cast receptacle, with solid brass pins
  • Receptacle is recessed mounted into the spacer to repel water
  • Thicker, harder durometer mounting spacer won't deform if over-torqued
  • Offered in both straight and 90 degree options to support mounting configurations
