UltraLink™ Power Cords

    Grote UltraLink™ Power Cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations. A special adhesive bonds the cable to the plug, eliminating the need for a supporting spring and preventing moisture from entering the back of the plug. Superior cords that provide maximum reliability in the harshest environments
    Grote Loading Ajax Spinner

    8718015' w/72" & 12" Lead, Coiled, HD

    8718015' w/72" & 12" Lead, Coiled, HD

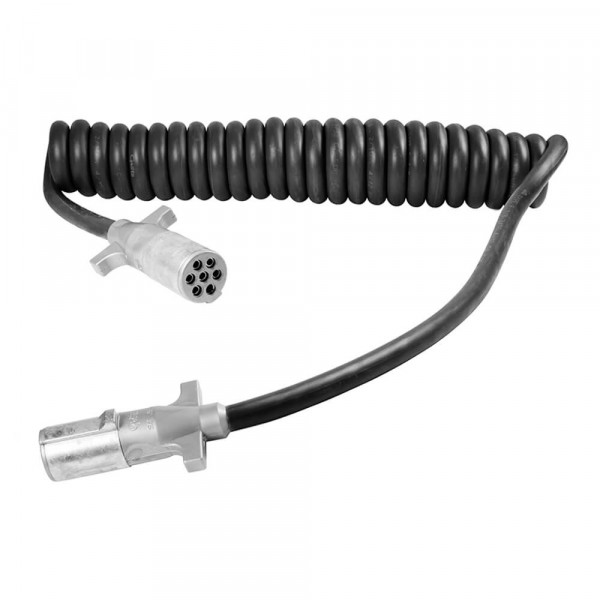

    • UltraLink™ Power Cords, 15' w/72" & 12" Lead, Coiled, HD thumbnail

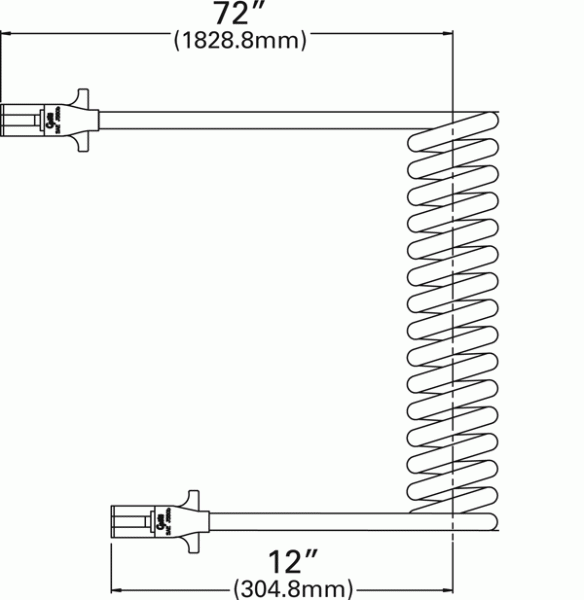

    • 87180 - drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Color: Black
    • VMRS: 034-003-037
    • Length: 15'
    • Gauge: 6/12 GA, 1/10 GA
    • Standards: J560b, J2222
    • Material: EVA
    • Coiled or Straight: Coiled
    • Plug: Straight
    • Leads: 12" & 72"
    • Style: Non-ABS
    • Plug / Socket #: 7
    • Operating Temperature: -40°F to +176°F (-40°C to +80°C)
    Features & benefits
    • Zinc die-cast plugs filled w/ elastomeric material that resists crushing & acts as potting to seal solid brass terminals from moisture
    • Advanced polymer jacketing material provides complete sealing and abrasion protection between -55°F and 190­°F (Premium Versions)
    • Provides power delivery & exceeds power delivery minimum legal lamp requirements for single/double trailer configurations
    • Adhesive bonds cable to plug, eliminating need for supporting spring & preventing moisture from entering the back of the plug
    • Provides excellent recoil memory, chemical, and abrasion resistance
    • Solid brass terminals are corrosion resistant, and provide superior current capacity with minimal voltage drop
