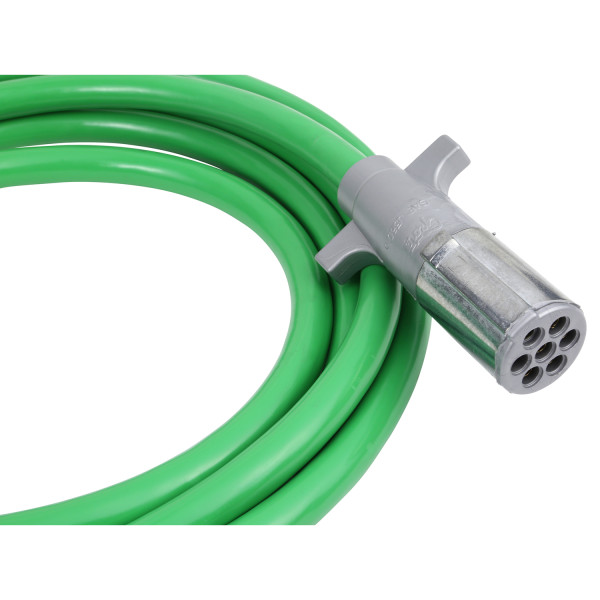

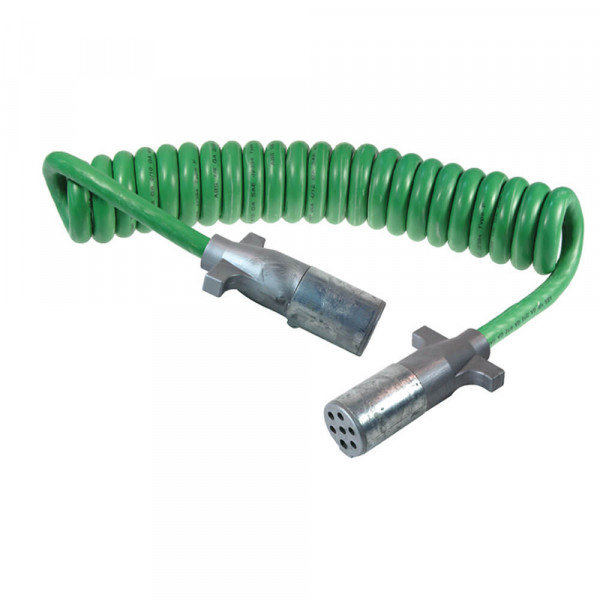

    UltraLink™ ABS Power Cords

    Grote’s UltraLink’s crush-resistant design can survive being run over by a heavy-duty vehicle while conventional hollow core designs are permanently deformed and rendered useless.
    Grote Loading Ajax Spinner

    8710312' w/12" Lead, Coiled, Premium

    8710312' w/12" Lead, Coiled, Premium

    • UltraLink™ ABS Power Cords, 12' w/12" Lead, Coiled, Premium thumbnail
    • 87103 - drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Color: Green
    • Length: 12'
    • Coiled or Straight: Coiled
    • Style: ABS
    • Leads: 12"
    • Plug / Socket #: 7
    • VMRS: 034-003-037
    • Operating Temperature: -85⁰F to 212⁰F (-65⁰C to 100⁰C)
    • Pack Quantity: 1
    • Gauge: 1/8 GA, 2/10 GA, 4/12 GA
    • Standards: J2394, J560b, J2222
    • Material: Polyurethane
    • Plug: Straight
    Features & benefits
    • UltraLink™ power cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations
    • Zinc die-cast plugs are filled with elastomeric material that resists crushing & acts as potting to seal solid brass terminals from moisture
    • Provides excellent recoil memory, chemical, and abrasion resistance
    • Adhesive bonds cable to plug, eliminating need for supporting spring and preventing moisture from entering the back of the plug
    • Solid brass terminals are corrosion resistant, and provide superior current capacity with minimal voltage drop
    • Advanced polymer jacketing material provides complete sealing and abrasion protection between -55°F and 190°F (Premium Versions)

    Additional information

    • Grote UltraLink Power Cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations
    • UltraLink zinc die-cast plugs are filled with elastomeric material that resists crushing and acts as potting to seal solid brass terminals from moisture
    • A special adhesive bonds the cable to the plug, eliminating the need for a supporting spring and preventing moisture from entering the back of the plug
    • Coiled versions have excellent recoil memory, plus chemical and abrasion resistance Solid brass terminals are corrosion resistant and provide superior current capacity with minimal voltage drop
    • Premium ABS cords’ advanced polymer jacketing material provides complete sealing and abrasion protection between -55°F and 190°F
