UltraLink™ ABS Power Cords

Grote’s UltraLink’s crush-resistant design can survive being run over by a heavy-duty vehicle while conventional hollow core designs are permanently deformed and rendered useless.

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

Building product information

Please wait a moment...

Add more products to compare

Technical specifications

Color: Green
Length: 20'
Coiled or Straight: Coiled
Style: ABS

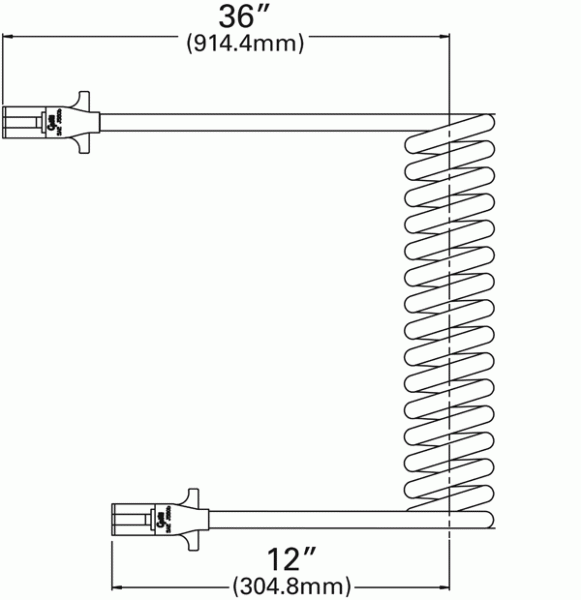

Leads: 12" & 36"
Plug / Socket #: 7
VMRS: 034-003-037
Operating Temperature: -85⁰F to 212⁰F (-65⁰C to 100⁰C)
Pack Quantity: 1
Gauge: 1/8 GA, 2/10 GA, 4/12 GA
Standards: J2394, J560b, J2222
Material: Polyurethane
Plug: Straight

Features & benefits

UltraLink™ power cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations

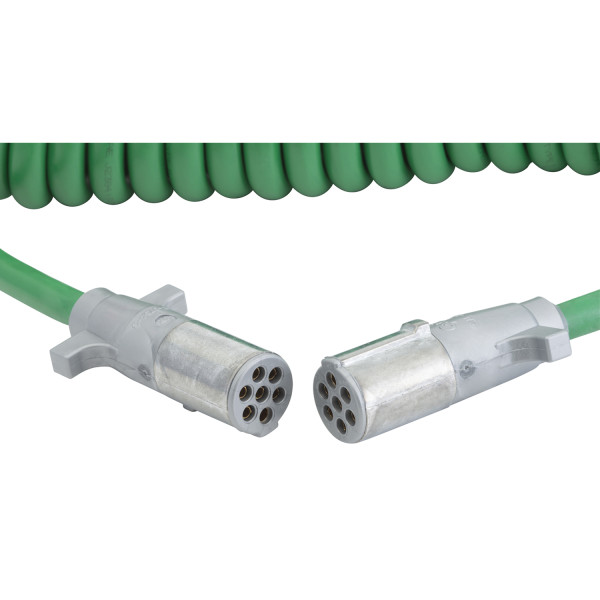

Zinc die-cast plugs are filled with elastomeric material that resists crushing & acts as potting to seal solid brass terminals from moisture
Provides excellent recoil memory, chemical, and abrasion resistance
Adhesive bonds cable to plug, eliminating need for supporting spring and preventing moisture from entering the back of the plug
Solid brass terminals are corrosion resistant, and provide superior current capacity with minimal voltage drop
Advanced polymer jacketing material provides complete sealing and abrasion protection between -55°F and 190°F (Premium Versions)

Find a Local Distributor

Additional information

Grote UltraLink Power Cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations
UltraLink zinc die-cast plugs are filled with elastomeric material that resists crushing and acts as potting to seal solid brass terminals from moisture
A special adhesive bonds the cable to the plug, eliminating the need for a supporting spring and preventing moisture from entering the back of the plug
Coiled versions have excellent recoil memory, plus chemical and abrasion resistance Solid brass terminals are corrosion resistant and provide superior current capacity with minimal voltage drop
Premium ABS cords’ advanced polymer jacketing material provides complete sealing and abrasion protection between -55°F and 190°F
