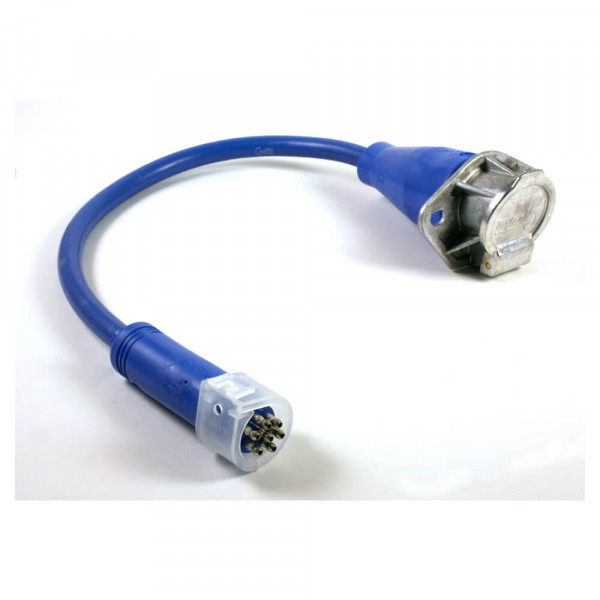

UBS® 7-Conductor-Receptacle Main Harnesses

Grote Loading Ajax Spinner

01-6608-E924", w/ Drop

01-6608-E924", w/ Drop

  • 01-6608-e9 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side One: Nose box plug (Solid-pin)
  • Connector Side Two: UBS 7-Way Female/Double .180" Slim-Line Female Bullet
  • Wire Material: GPT
  • Connector Quantity: 4
  • Wire Gauge: 1-10 GA, 6-12 GA
  • Connection Type: Nose box plug (Solid-pin), UBS 7-Way Female/Double .180" Slim-Line Female Bullet
  • Length: 2' (24")
  • Wire Length: 23"
  • Pack Quantity: Bulk
  • Product Type: Harness
  • # of Wires: 7
  • Style: Main Harness
  • Product Line: Ultra-Blue-Seal®
  • Warranty: 1 Year
Features & benefits
  • Receptacle is overmolded
  • Two-hole mount, solid pin (87860)
