Two Slim-Line Male To Two Double Females

Grote Loading Ajax Spinner

6616512" Long

6616512" Long

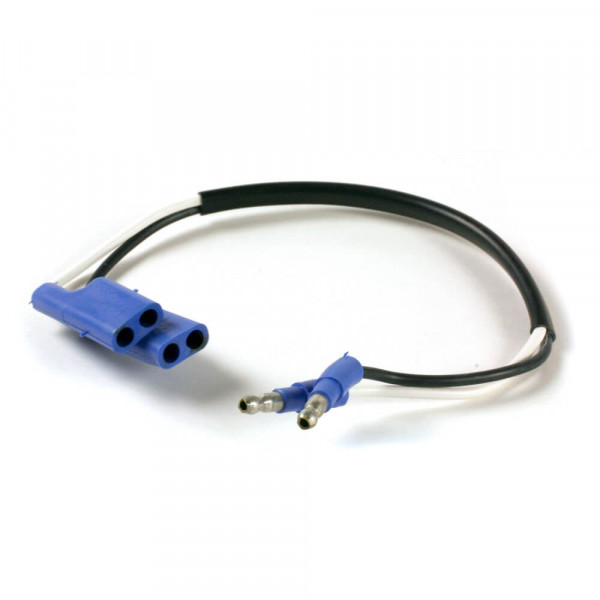

  • Two Slim-Line Male To Two Double Females, Marker Light Jumper, 1' (12") thumbnail

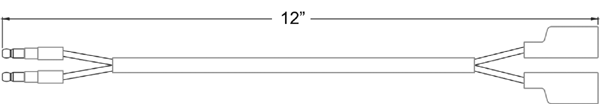

  • 66165 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side One: Double Slim-Line .180" Female Bullet
  • Wire Material: GPT
  • Connector Side Two: Slim-Line .180" Male Bullet
  • Connector Quantity: 4
  • Color: Black
  • Gauge: 14-2 GA
  • Wire Gauge: 2-14 GA
  • Connection Type: Slim-Line .180" Male Bullet, Double .180" Slim-Line Female Receptacle
  • Length: 1' (12")
  • Wire Length: 11"
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-023
  • # of Wires: 2
  • Style: Jumper Harness
Features & benefits
  • Used as marker lamp jumper
