Heavy Duty 7 Pole Sockets

Grote’s Heavy Duty 7-Way Sockets are designed to meet and exceed SAE J560 specifications. Our quality features include a reliable closure spring, industry standard mounting holes, and solid brass terminals for optimal conductivity.
Grote Loading Ajax Spinner

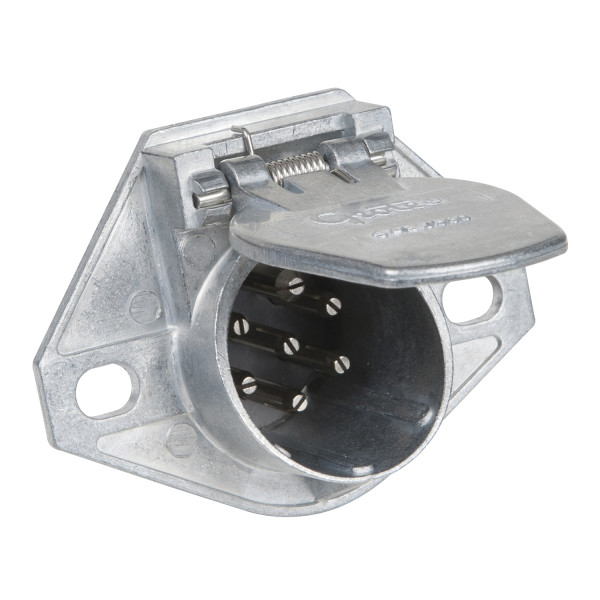

82-1002Socket w/ Enclosed Terminals

82-1002Socket w/ Enclosed Terminals

  • Heavy Duty 7-Way Socket With Enclosed Terminals thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Zinc die-cast
  • Amperage: 40 Amp @ 6-28V DC
  • Standards: SAE J560
  • Pack Quantity: 1
  • Mtg Hole: 2, 1/2"
  • Conductor: 7
  • Product Type: Socket
  • Terminals: enclosed, split pin
Features & benefits

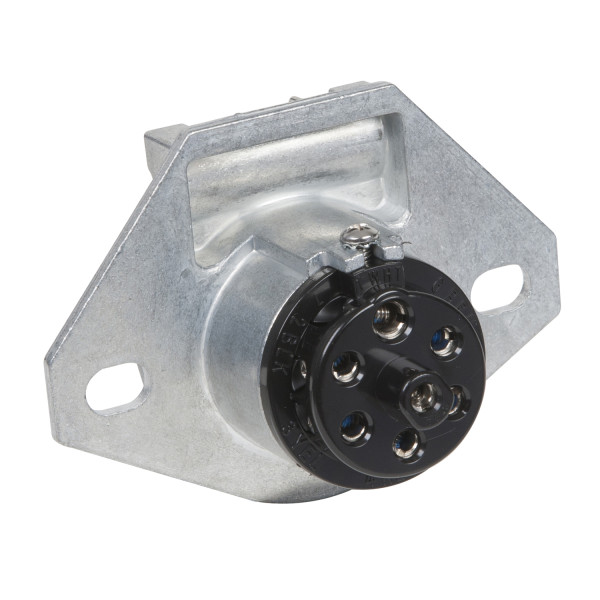

  • Circuit identification on the back of the socket
  • Terminals accept 16-10 gauge wires; 8 gauge ground wire
  • Solid brass pin terminals for best conductivity
  • Housing provides superior corrosion resistance
  • Plated-steel cable guards prevent cable chafing
  • Terminals accept from #16 wire to #8 ground wire
  • Circuit identification on the back of the plug & socket

Additional information

# Color Circuits Recommended
Wire Gauge
1 White Ground Return 8 GA
2 Black Clearance, Side Marker, Identification Lamp 12 GA
3 Yellow Left Turn Signal, Hazard Signal 12 GA
4 Red Stop Lamps, Anti-Lock Devices 10 GA
5 Green Right Turn Signal, Hazard Signal 12 GA
6 Brown Tail, Rear Clearance, Marker and License Lamps 12 GA
7 Blue Auxiliary Circuit, ABS
10 GA
