7-Way R.V. Connectors

Grote Loading Ajax Spinner

82-1058Socket w/ Enclosed Terminal

82-1058Socket w/ Enclosed Terminal

  • 82-1058 thumbnail
  • 82-1058 thumbnail

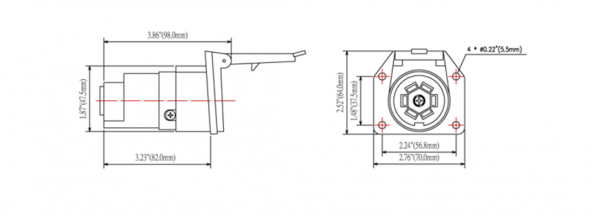

  • 82-1058 Line Drawing thumbnail


0 Product Added


Quickly compare up to 5 Grote products...

pdf spinner

Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Pack Quantity: 1
  • Conductor: 7
  • Material: Nylon
  • Product Type: Connector
  • Warranty: 1 Year
  • Voltage: 12-24V
Features & benefits
  • 4 mounting holes - 0.22"
  • Terminals accept 16-10 gauge wires; 8 gauge ground wire
  • Fits Ford Style/Universal Mounts
  • Solid brass pin terminals for best conductivity
  • Housing provides superior corrosion resistance
  • Plated-steel cable guards prevent cable chafing
  • Terminals accept from #16 wire to #8 ground wire
  • Circuit identification on the back of the plug & socket
