90mm LED Headlamps

    Grote's 90mm LED standalone High Beam and Low Beam headlamps along with the combination High Beam / Low Beam Bi-LED headlamp module are the perfect high-tech replacements for standard 90mm halogen headlamps. Designed to enhance driving safety while meeting the most demanding on and off road requirements, Grote's new 90mm headlamp family makes upgrading to superior LED performance an easy decision.
    Grote Loading Ajax Spinner

    84591-390mm LED Low Beam Headlamp - bulk pack

    84591-390mm LED Low Beam Headlamp - bulk pack

    • 84591-3 thumbnail

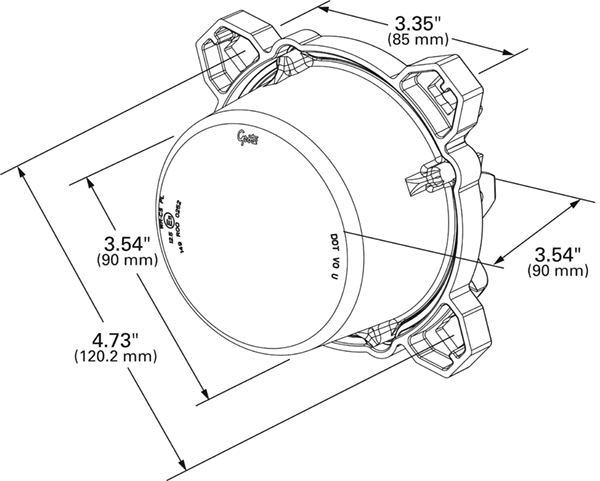

    • 84591-3 Line Drawing thumbnail

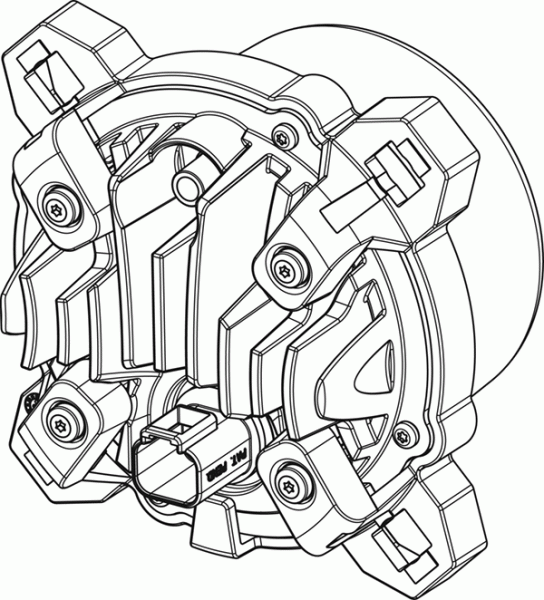

    • 84591-3 Line Drawing Back thumbnail


    0 Product Added


    Quickly compare up to 5 Grote products...

    pdf spinner

    Add more products to compare

    Technical specifications
    • Amperage: 1.13A @ 13.8V, 0.55A @ 28V
    • Ingress Protection: IP69K
    • Connection Type: Integrated 2-pin DT connector
    • Application: Off-Road, On-Highway
    • High/low Voltage Limits: 9V/32V
    • Operating Temperature: -40°C to +85°C
    • Lens Color: Clear
    • Color Temperature: 6100 K
    • Mounting Type: 2- and 4-point rigid, 3-point using adjustment hardware
    • Lumens: 830 Effective
    • Pack Quantity: 4
    • Heated (Y/N): N
    • Dimensions: 143x143x85mm (H/W/D)
    • Housing Color: Black
    • Voltage: 9-32V
    • Material: Lens: Hard-coated Polycarbonate, Housing: Powder-coated Aluminum
    • Weight: 1.2 lb (527 grams)
    • Regulations: FMVSS 108 LB1V, ECE R149 Sym. (R113)
    • Moisture Resistancy: IP69K
    • Package Type: Bulk Pack Box
    • ROHS: Yes
    • Watts: 15W
    Features & benefits
    • 90mm diameter lens
    • Mounting system with included adjustment rods designed to replace standard 90mm halogen headlamps
    • Hard-coated, high-impact polycarbonate lens
    • Cast aluminum housing with sealed integrated connector
    • Compact lamp profile to fit most existing applications
    • 9V - 32V multi-volt design
    • IP69K rated for maximum protection against dust and moisture intrusion
