90mm LED Headlamps

Grote's 90mm LED standalone High Beam and Low Beam headlamps along with the combination High Beam / Low Beam Bi-LED headlamp module are the perfect high-tech replacements for standard 90mm halogen headlamps. Designed to enhance driving safety while meeting the most demanding on and off-road requirements, Grote's new 90mm headlamp family makes upgrading to superior LED performance an easy decision.
Grote Loading Ajax Spinner

64X0190mm Combination High Beam / Low Beam LED Headlamp - ECE Asymmetrical (LHD/RHT)

64X0190mm Combination High Beam / Low Beam LED Headlamp - ECE Asymmetrical (LHD/RHT)

  • 64X01 thumbnail

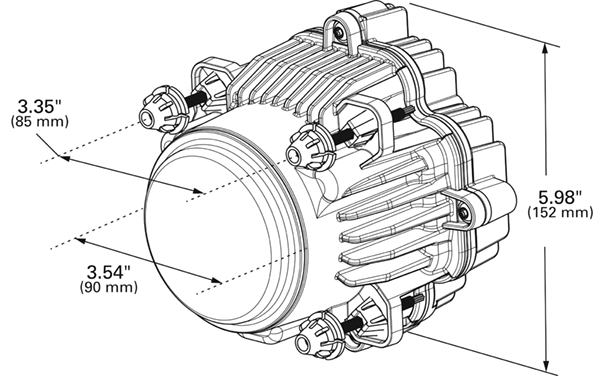

  • 64X01 Line Drawing thumbnail

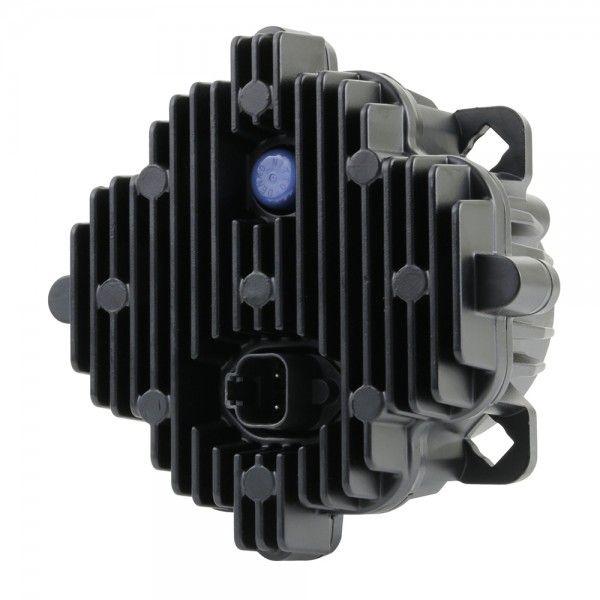

  • 64X01 Back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Amperage: 3.2A @ 14V - HB, 1.6A @ 14V - LB
  • Ingress Protection: IP69K
  • Connection Type: Integrated 4-pin DT connector
  • Application: On-Highway, Off-Road
  • High/low Voltage Limits: 9V/32V
  • Color Temperature: 5700 K
  • Operating Temperature: -40°C to +85°C
  • Lens Color: Clear
  • Mounting Type: 3-point using adjustment hardware, 2- and 4-point rigid
  • Lumens: 650 Effective - LB, 1300 Effective - HB
  • Pack Quantity: 1
  • Heated (Y/N): N
  • Dimensions: 152x152x129mm (H/W/D)
  • Housing Color: Black
  • Material: Lens: Hard-coated Polycarbonate, Housing: Powder-coated Aluminum
  • Voltage: 9-32V
  • Weight: 3lb (1350 grams)
  • Shape: Round
  • Regulations: ECE R149 Asymmetric - LH Drive/RH Traffic
  • Moisture Resistancy: IP69K
  • Product Type: LED Headlamp
  • Package Type: Individual Box
  • ROHS: Yes
  • Watts: 47W - High Beam, 23W - Low Beam
Features & benefits
  • 90mm diameter lens
  • Mounting system with included adjustment rods designed to replace standard 90mm halogen headlamps
  • Hard-coated, high-impact polycarbonate lens
  • Cast-aluminum housing with sealed integrated connector
  • Compact lamp profile to fit most existing applications
  • 9V - 32V multi-volt design
  • IP69K rated for maximum protection against dust and moisture intrusion
