LED Off Road Light Bars

    No matter where you’re going or what you’re doing, Grote's Off Road Light Bars are sure to light up what’s in front of you.
    Grote Loading Ajax Spinner

    64J1110" Light Bar, 12V/24V

    64J1110" Light Bar, 12V/24V

    • 10" Off Road LED Light Bar 360 thumbnail
    • 10" Off Road LED Light Bar thumbnail
    •  thumbnail


    0 Product Added


    Quickly compare up to 5 Grote products...

    pdf spinner

    Add more products to compare

    Technical specifications
    • Material: Aluminum Housing, Polycarbonate Lens
    • Finish: Black Anodic Coating
    • Color: White
    • Lens Color: Clear
    • Housing Color: Black
    • Voltage: 12/24V
    • Amperage: 1.5A-3.5A
    • Lumens: 2700 Lumens(Effective)
    • Light Pattern: Far Flood

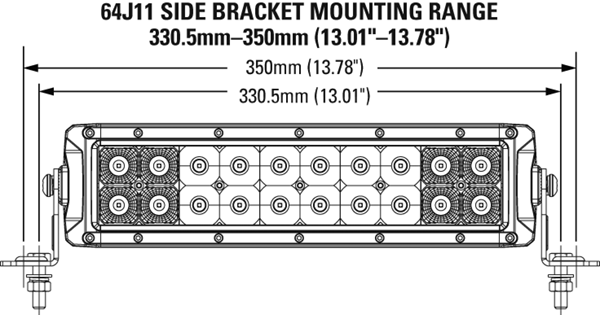

    • Mounting Type: Bracket
    • Connection Type: Hardshell
    • Ingress Protection: IP68

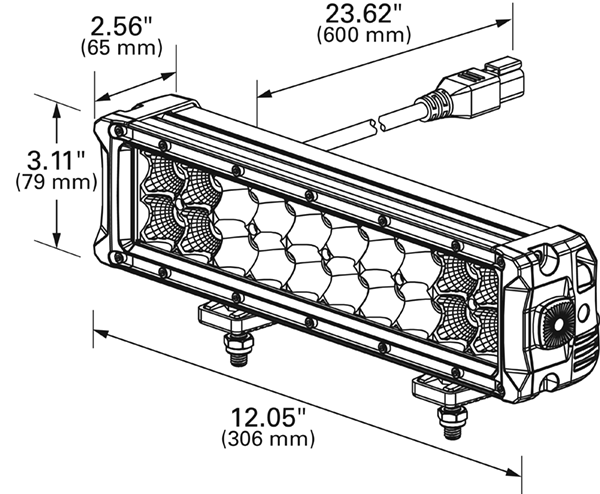

    • Size: 10"
    • Application: Off-Road
    • VMRS: 034-006-031
    Features & benefits
    • Connect with Light Bar Harness 67760
    • The far flood pattern shines far and wide with light most like sunlight so you always know what you're looking at

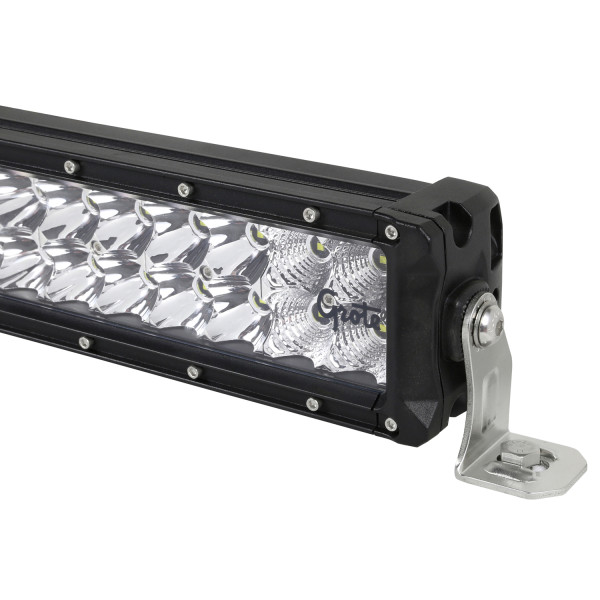

    • Two Mounting Brackets
    • Replacement harness
    • Easier on vehicle electrical systems because they run cooler and use less power than halogen or HID lamps for the same output
    • Two Socket Head Cap Screws M8 x 1.25 x 40mm Long
    • Two Hex Nuts
    • Built to withstand extreme heat or cold

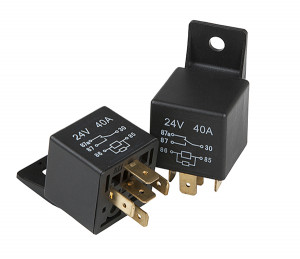

    • *If using harness with voltages over 14V, use relay 84-1093

    Replacements, Tools & Accessories

    Additional information

    Harness and Hardware included.

    off road light bar harness


    Application photos

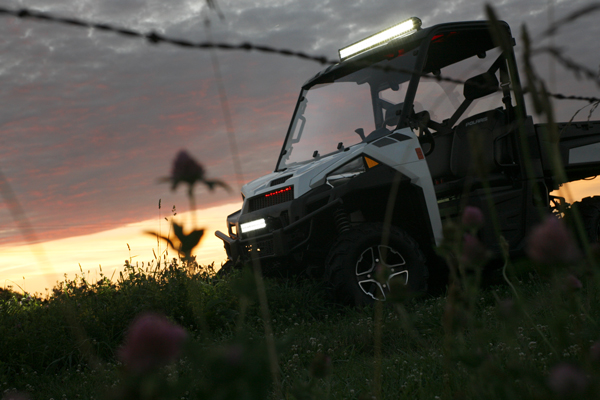

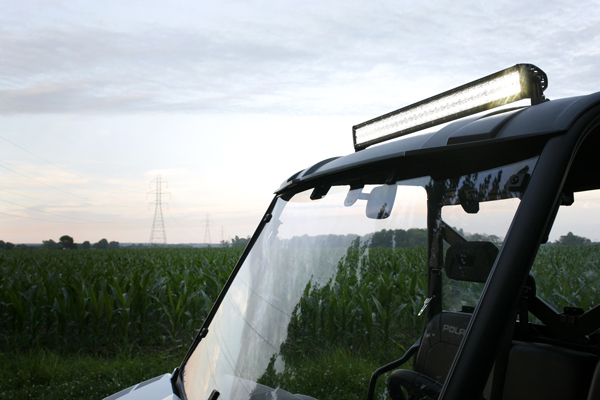

    Jeep with Grote LED Light bar and Headlights Grote truck with LED light bar Jeep with Grote LED Light bar and Headlights Grote LED Light Bar on ATV

    Customer reviews

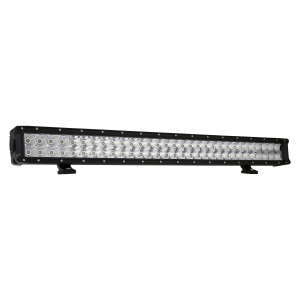

    • 64J31

      Great light bar, awesome craftsmanship, tight water-seal, very bright and on top of that, great customer service and prices.

      Jose A. Jun 16, 2016

    • 64J11

      Installed this on my 03 Jeep Wrangler. The mounting points are perfect for mounting on my winches fairlead. I love the size of the 10 lamp as it can be tucked in places that won't get damaged when I'm offroad. Simple install and super bright white light.

      Brent T. May 02, 2016
