LED Off Road Light Bars

    No matter where you’re going or what you’re doing, Grote's Off Road Light Bars are sure to light up what’s in front of you.
    Grote Loading Ajax Spinner

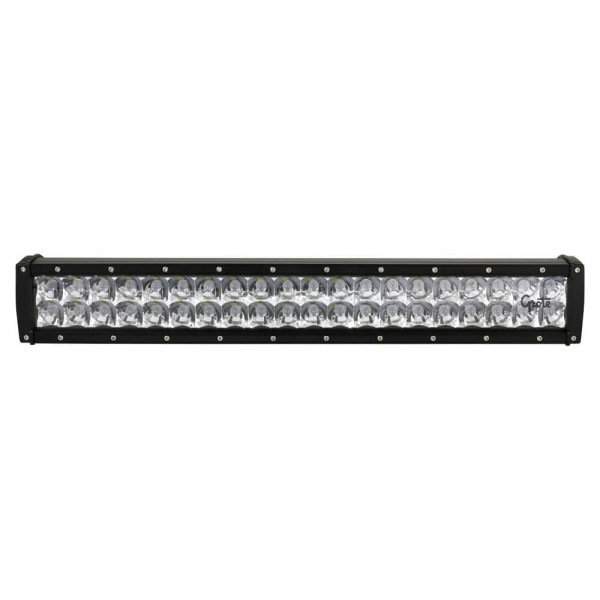

    64J2120" LED Light Bar, 12V/24V

    64J2120" LED Light Bar, 12V/24V

    • 20" LED Off Road Light Bar 360 thumbnail
    • 20" LED Off Road Light Bar thumbnail
    •  thumbnail
    • Light Bar Harness Switch and Hardware thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Aluminum Housing, Polycarbonate Lens
    • Finish: Black Anodic Coating
    • Color: White
    • Lens Color: Clear
    • Housing Color: Black
    • Voltage: 12/24V
    • Amperage: 3A-7A
    • Lumens: 5400 Lumens(Effective)
    • Light Pattern: Far Flood

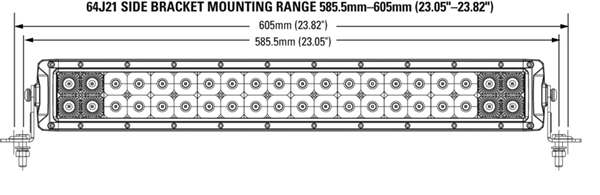

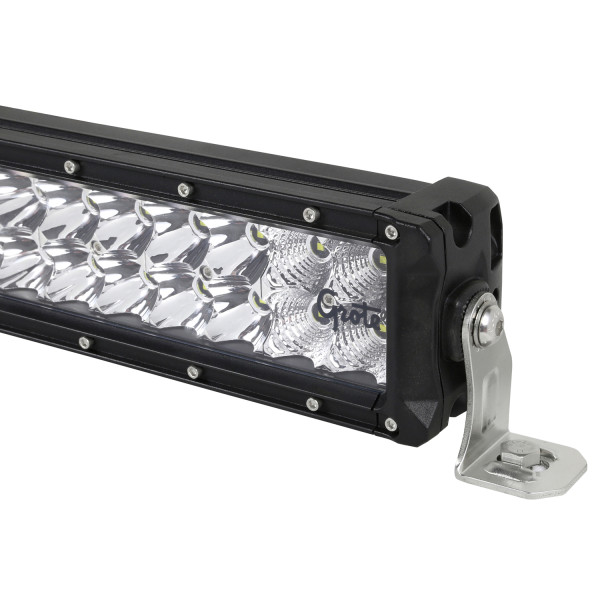

    • Mounting Type: Bracket
    • Connection Type: Hardshell
    • Ingress Protection: IP68

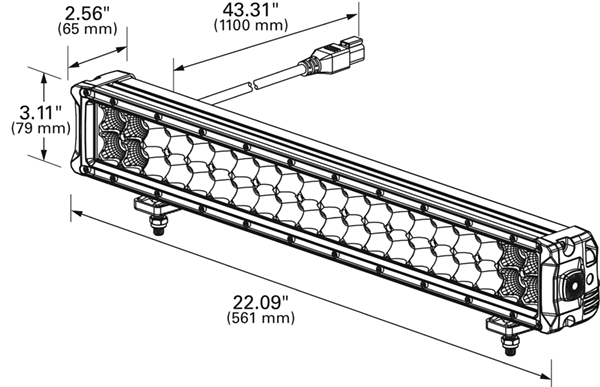

    • Size: 20"
    • Application: Off-Road
    • VMRS: 034-006-031
    Features & benefits
    • The far flood pattern shines far and wide with light most like sunlight so you always know what you're looking at
    • Two Mounting Brackets
    • Replacement harness
    • For use with 10" light bars
    • Easier on vehicle electrical systems because they run cooler and use less power than halogen or HID lamps for the same output
    • Two Socket Head Cap Screws M8 x 1.25 x 40mm Long
    • Two Hex Nuts
    • Built to withstand extreme heat or cold
    • *If using harness with voltages over 14V, use relay 84-1093

    Additional information

    Harness and Hardware included.

    off road light bar harness

    10" LED Off Road Light Bar Light Pattern

    Application photos

    Jeep with Grote LED Light bar and Headlights Grote truck with LED light bar Jeep with Grote LED Light bar and Headlights Grote LED Light Bar on ATV
