Material Handling LED Beacons
78113Class III, Permanent Mount, Tall Lens
Compare
0 Product Added
Technical specifications
- Color: Amber
- Voltage: 12/72V
- Class: Class III
- Amperage: 0.09A
- Type: Material Handling
- Length: 2.84"
- Operating Temperature: -30°C to +50°C
- Gauge: 18 GA
- Height: 5.1"
- Mounting Type: Permanent
- Connection Type: Blunt Cut
- Lens Color: Amber
- Shape: Compact Dome
- Standards: SAE J845
- Wire Length: 9"
- Material: Polycarbonate/Nylon
- VMRS: 034-001-063
- Product Type: Beacon
- Width: 3.86"
- Warranty: 1 Year
Features & benefits
- Circuit board is conformal coated to protect circuitry
- Features three low intensity LEDs

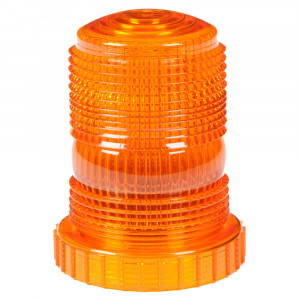

- Easy 'Twist-off' lens for ease of replacement
- ideal replacement solution for rotating or strobe beacons
- Lightweight, durable polycarbonate lens
- This high quality and economical beacon has a wide operating range of 12-80V and low amp draw characteristic of LED technology
- The reinforced nylon base with epoxy-sealed electronics provides superior environmental protection against the elements and vibration
