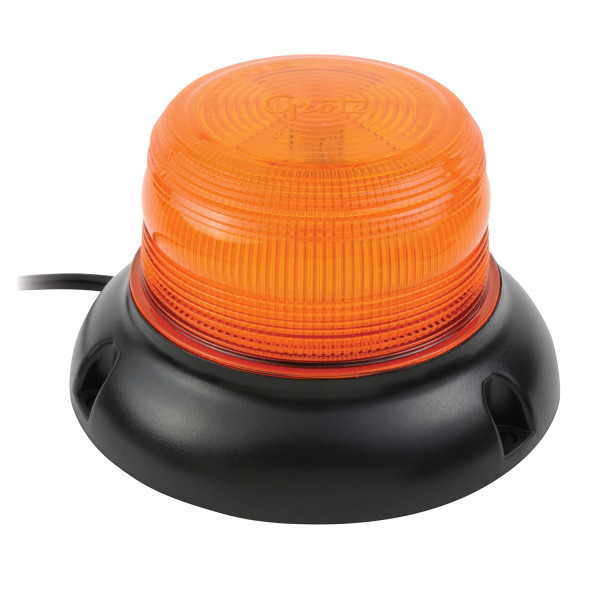

Industry-Class Beacons
Grote's Industry-Class Beacons are purpose-built signaling solutions designed for demanding environments where visibility, reliability, and compliance are critical. They deliver application-specific performance with optimized flash patterns and high-intensity output for clear safety communication. Engineered for durability and low power draw, they perform reliably in harsh, high-duty-cycle conditions. While designed for specific industry needs, they remain versatile enough for broad commercial and industrial applications.
Compare
0 Product Added
Technical specifications
- Material: Polycarbonate
- Optics: Fresnel
- Color: Amber
- Lens Color: Amber
- Voltage: 12/24 V
- Amperage: 1.5A @ 12VDC
- Light Pattern: 7 Flash Patterns
- Class: Class I
- Wire Gauge: 20 GA
- Series: Industry Class
- Base Style: Surface Mount
- Connection Type: Blunt Cut
- Ingress Protection: IP67
- Operating Temperature: -30°C (-22°F) TO 60°C (140°F)

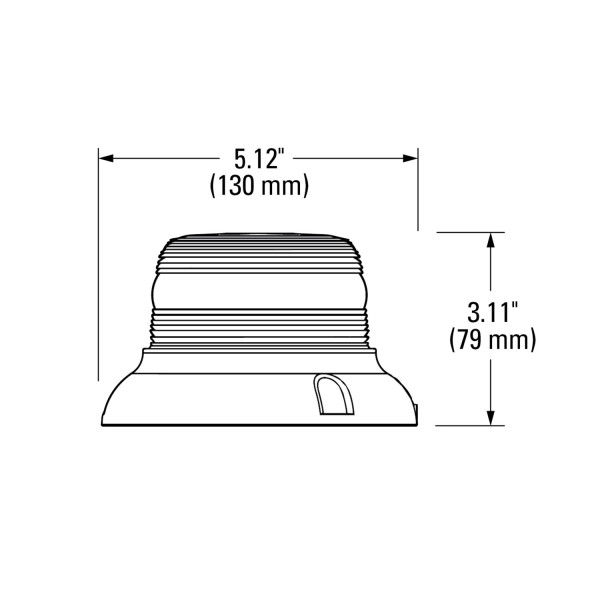

- Height: 79 mm / 3.11"
- Wire Length: 11.4"
- Application: Airport / Fleet
- Standards: UKCA, SAE J845 Class I, Meets CISPR 25 Class III, ICAO/CAP168, ECE R65 Class I, ECE R65 (TA1), ECE R10, CE
- Regulations: UKCA, ECE R65, ECE R10, CE
- Pack Quantity: 1
- Mtg Hole: 3
- Wiring: Yellow: Pattern Select, Red: Power, Black: Ground
- VMRS: 034-006-056
- Package Type: Retail Carton
- Diameter: 130 mm / 5.12"
- # of Wires: 3
- Feature: ICAO/ CAP 168
- ROHS: Yes
- Warranty: 3 Years
- Shape: Low Profile
Features & benefits
- Meets CAP 168 and ICAO standards for compliant airport and aviation facility use
- Seven selectable flash patterns provide flexible signaling for multiple ground operations
- IP67-rated housing delivers reliable performance in wet, dusty, and high-vibration conditions
- Fresnel lens optics ensure 360° visibility, including from above
- Wide temperature range supports reliable operation in extreme climates
