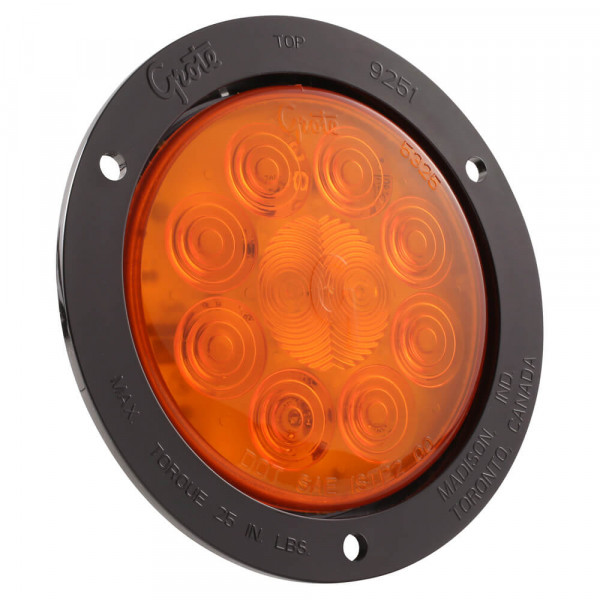

53293 - SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights
Sorry, this product is obsolete...
53293
This product has been replaced by the following:

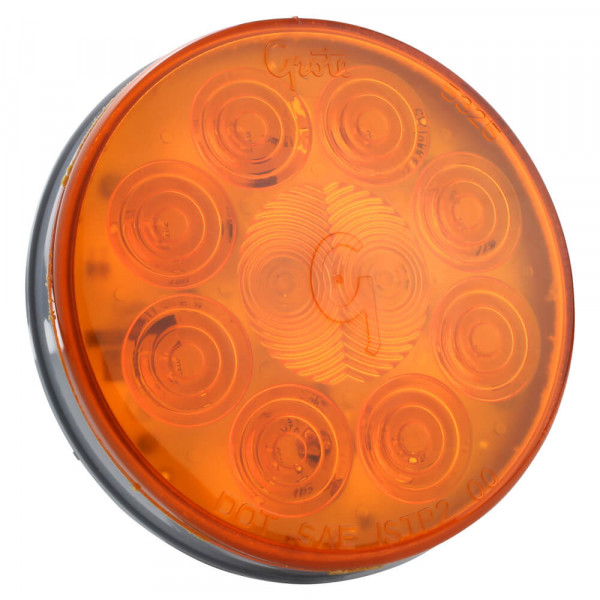

53253 - SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights
92512 - Theft-Resistant Flanges For 4" Round Lights Technical specifications
- Material: Acrylic Lens, ABS Housing, Polycarbonate Flange
- Color: Amber
- Lens Color: Amber
- Housing Color: Gray
- Voltage: 12V
- Amperage: .15A
- Mounting Type: Bracket
- Connection Type: Male Pin
- Size: 4"
- Regulations: FMVSS 108
- Functions: P2
- VMRS: 034-002-059
- Diameter: 4"
- Product Type: Auxiliary Turn
- Product Line: SuperNova®
- Shape: Round
- Warranty: 10 Years
This product is obsolete
Features & benefits
- Hermetic lens-to-housing seal
- Encapsulant potting for total circuit board protection
- Uses same UBS pigtail as male pin incandescent
- Lens design spreads light for maximum dispersion
- Advanced Pin Connection System uses tin-plated, solid-brass pin terminals
This product is obsolete
