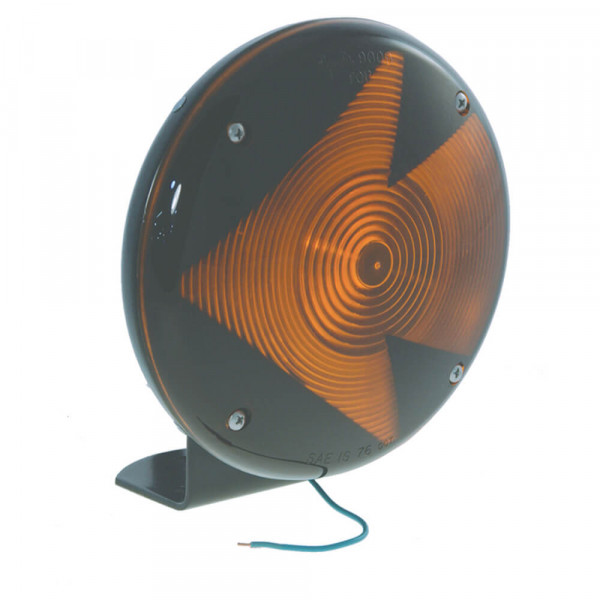

78303Molded .180 Terminal Pigtail w/ Arrow Lens

78303Molded .180 Terminal Pigtail w/ Arrow Lens

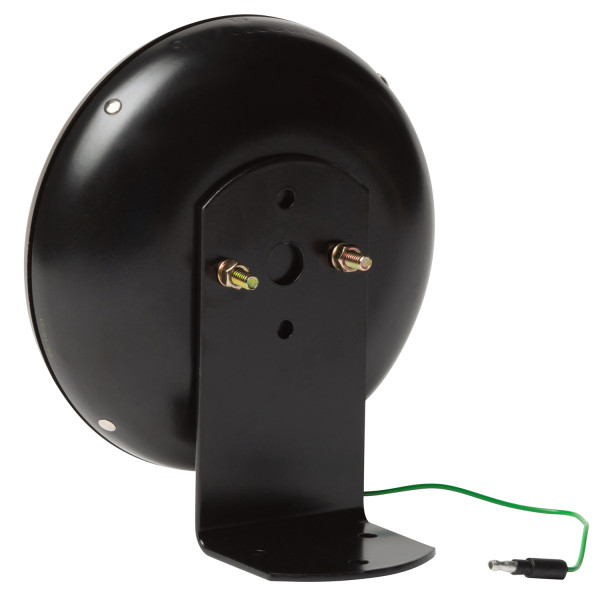

  • 78303 thumbnail

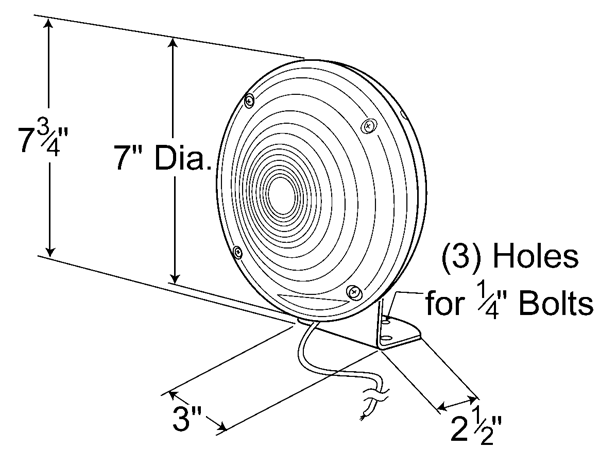

  • Grote product drawing - 7" Round school bus rear turn light with arrow thumbnail
  • 78303 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Steel Housing
  • Finish: Painted Black
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: 2.1A
  • Mounting Type: Bracket
  • Connection Type: Standard .180" Male Bullet
  • Size: 7"
  • Application: School Bus
  • Regulations: FMVSS 108
  • Functions: I
  • Bulb: 1156, 32 CP
  • VMRS: 034-003-071
  • Diameter: 7"
  • Product Type: Lamp
  • Shape: Round
  • Warranty: 1 Year
Features & benefits
  • Yellow arrow design for rear turn only
  • Two-stud or bracket mounting
  • 78303 and 78313 not for front turn use
  • Heavy-gauge formed steel housing
Find a Local Distributor

Replacements, Tools & Accessories

Bracket Mounting Bracket For 7" Round Lights, Black
93982
