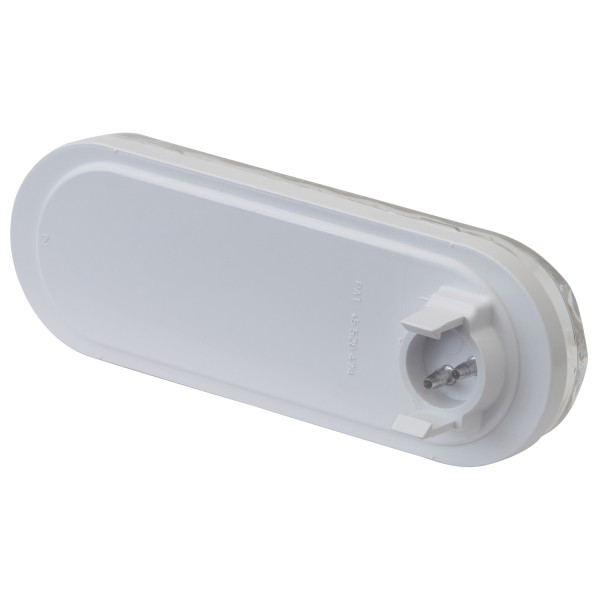

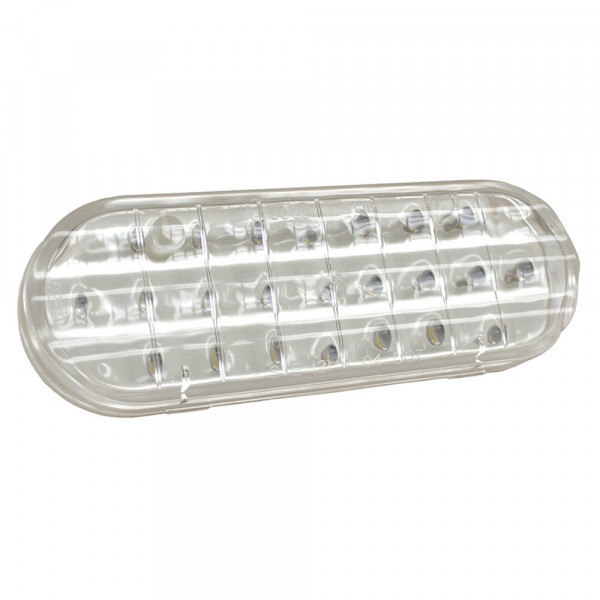

    SuperNova® Oval Dual-System LED Backup Light

    Grote's SuperNova® Oval Dual-System LED Backup Light has an encapsulant potting for total circuit-board protection and uses same UBS pigtail as male pin incandescent.
    Grote Loading Ajax Spinner

    62591Vertical Grommet Mount, Male Pin

    62591Vertical Grommet Mount, Male Pin

    • supernova oval dual system led backup light vertical grommet male clear 360 thumbnail
    • supernova oval dual system led backup light vertical grommet male clear thumbnail

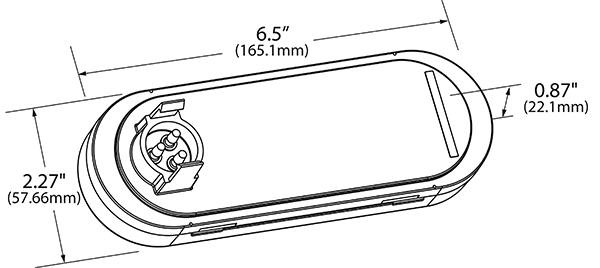

    • 62591 - drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Acrylic Lens, ABS Housing
    • Color: White
    • Lens Color: Clear
    • Housing Color: White
    • Amperage: .30A
    • Mounting Type: Bracket
    • Connection Type: Male Pin
    • Size: 6"
    • Regulations: FMVSS 108
    • Functions: R(2)
    • VMRS: 034-003-142
    Features & benefits
    • Requires two lamps to meet backup function
    • Uses same UBS pigtail as male pin incandescent
    • Encapsulant potting for total circuit-board protection
    • Fewer diodes so lamp requires less power

    Replacements, Tools & Accessories

    Bracket Mounting Bracket For 6" Oval Lights, 90° Angle Bracket, Black
    43362
     Bracket "Z" Mounting Bracket For Oval Light
    43952
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Gray
    43220
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Chrome Plated
    43223
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Black
    43222
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Steel
    43723
     Bracket Mounting Bracket For Oval Lights, Black
    43100
     Grommet Grommet For 6" Oval Lights, Open Grommet
    92420
     Grommet Grommet For 6" Oval Lights, Closed Back
    92720
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire Plug-In Pigtails for Male Pin Lights, 10" Long, Chassis Ground, Slim-Line .180 Male
    66842
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wire
    67013
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire 90° Plug-In Pigtails for Male Pin Lights, 10" Long, Chassis Ground, Slim-Line .180 Male
    66846
     Pigtail BU 2-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return System, Slim-Line .180 Male
    66816
