SuperNova® 4" Single-System LED Backup Light

Grote's SuperNova® 4" Single-System LED Backup Light has an encapsulant potting for total circuit-board protection and advanced pin system that uses tin-plated, solid-brass pin terminals.
Grote Loading Ajax Spinner

62401Male Pin

62401Male Pin

  • 4" led backup light clear thumbnail

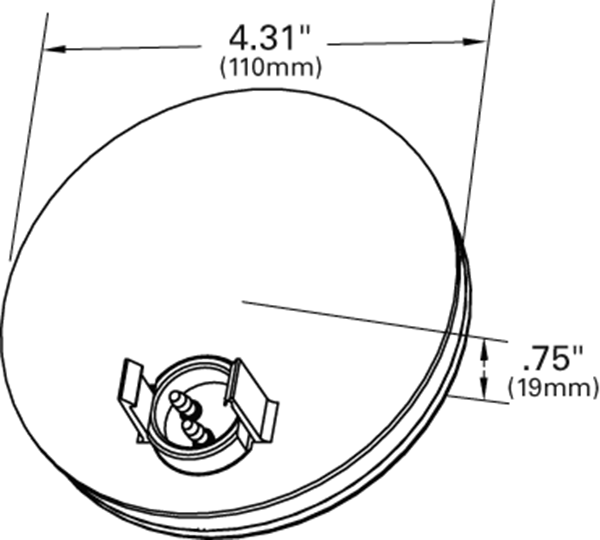

  • 62401 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: White
  • Lens Color: Clear
  • Housing Color: Clear
  • Voltage: 9-16V
  • Amperage: .45A
  • Mounting Type: Grommet, Bracket
  • Connection Type: Male Pin
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: R
  • VMRS: 034-003-142
Features & benefits
  • Hard-coated lens for long-term UV protection
  • Meets backup function with single-lamp system
  • Uses same UBS pigtail as male pin incandescent
  • Encapsulant potting for total circuit-board protection
  • Advanced pin system uses tin-plated, solid-brass pin terminals
