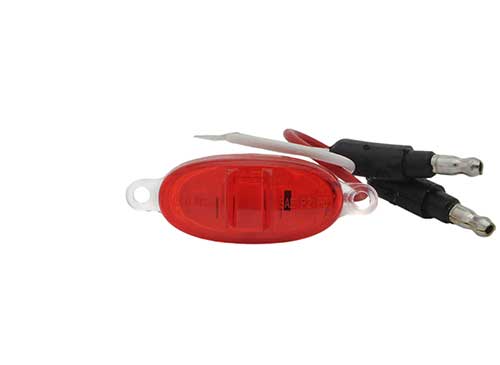

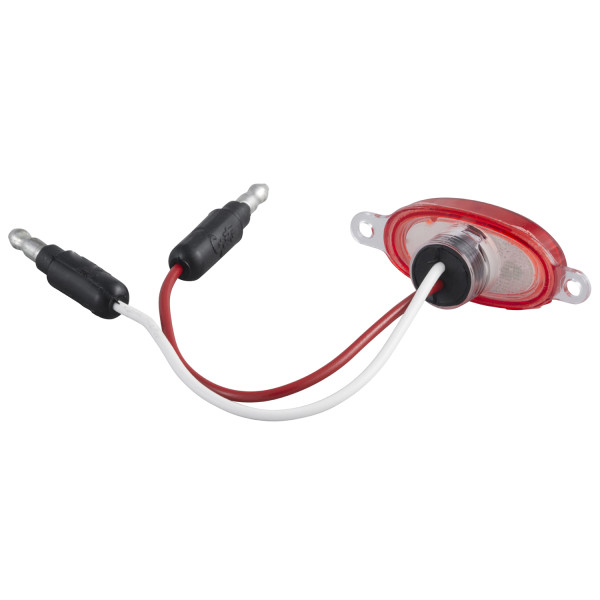

MicroNova® LED Clearance Marker Lights

Grote's MicroNova® LED Clearance Marker Lamps are small in size, making them perfect for narrow applications. With their sleek aerodynamic styling, these clearance markers maintain a low-profile, making them less susceptible to damage.
Grote Loading Ajax Spinner

45282Red, Surface Mount

45282Red, Surface Mount

  • 45282 360 thumbnail
  • 45282 thumbnail
  • 45282 - Drawing thumbnail
  • 45282 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Amperage: .05A
  • Mounting Type: Screw
  • Connection Type: Standard .180" Male Bullet
  • Regulations: FMVSS 108
  • Functions: PC
  • Mtg Hole: .75"
  • VMRS: 034-004-253
  • Product Type: Clearance Marker Lamp
  • Product Line: MicroNova®
  • Shape: Oval
  • Warranty: 3 Years
Features & benefits
  • *Without Chrome Bezel
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit board protection against vibration and corrosion
  • All PC versions meet requirements when mounted at 45-degree angle
  • Grommet mount versions have no exposed fasteners
