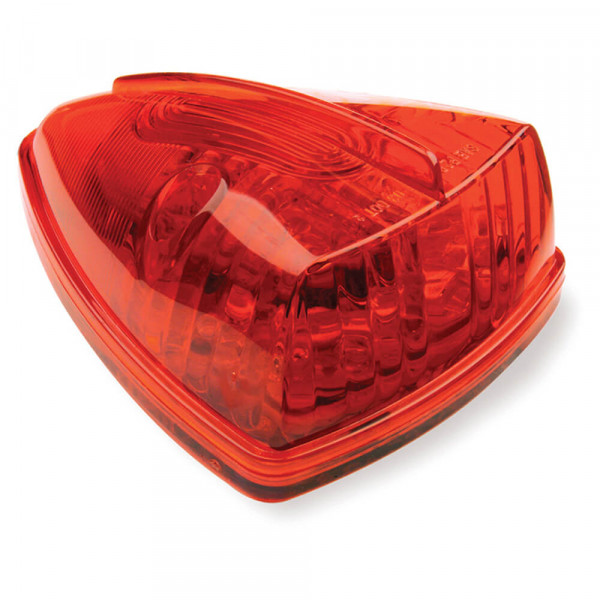

Hi Count® School Bus Wedge LED Marker Lights

Grote's Hi Count® School Bus Wedge LED Marker Lights have 15 diodes in both red and yellow lamps and meet PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

G5052Red

G5052Red

  • G5052 thumbnail

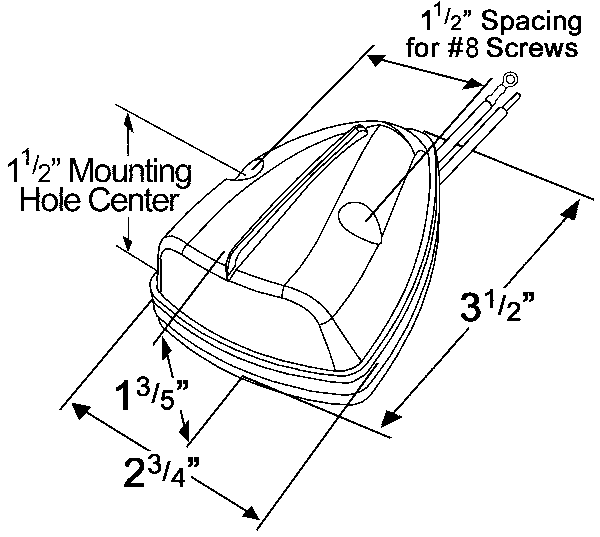

  • g5052 - drawing thumbnail
  • G5052 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: Red
  • Lens Color: Red
  • Amperage: .1A
  • Mounting Type: Screw
  • Connection Type: Blunt Cut, Ring Terminal
  • Application: School Bus
  • Fits: School Bus
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • VMRS: 034-004-253
  • Product Type: Marker Lamp
  • Product Line: Hi Count®
  • Shape: Triangular
  • Warranty: 2 Years
  • Bulk Pack #G5052-3: 50
Features & benefits
  • Potted circuit board

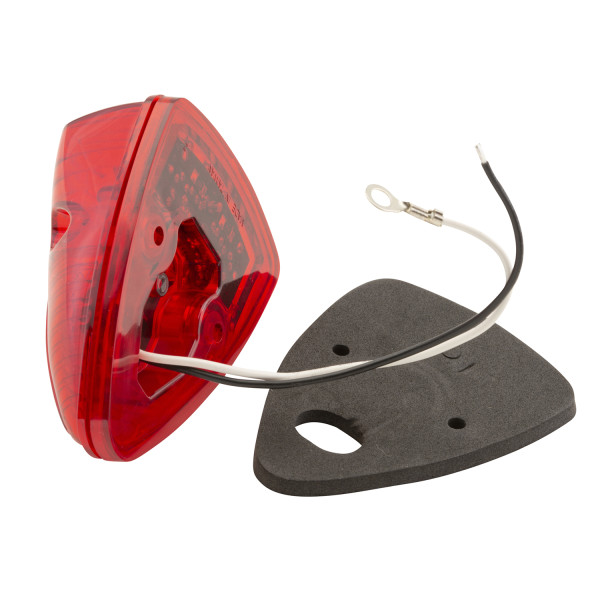

  • Mounting gasket included
  • Blunt-cut, hardwire termination
  • Hermetically sealed construction
  • 15 Diodes in both red and yellow lamps
  • Meets PC function when mounted at a 45° angle
