Hard-Shell Connector Pigtails

Grote Loading Ajax Spinner

66865Hard Shell

66865Hard Shell

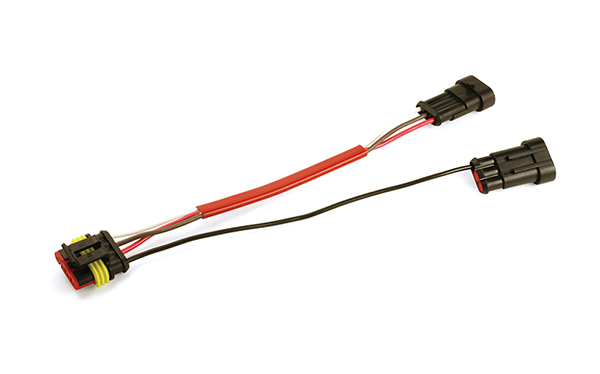

  • Hard-Shell Connector Pigtail, Hard Shell, 4-in-1 Connector thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: 3-Way Hard Shell
  • Wire Material: GPT
  • Connector Quantity: 3
  • Connector Side One: 4-Way Hard Shell
  • Wire Gauge: 16 GA
  • Connection Type: 4-Way Hard Shell, 3-Way Hard Shell
  • Length: 5/6' (10")
  • Wire Length: 9"
  • Fits: 4-in-1 STT with Integrated Back-up
  • Pack Quantity: Individual (6 per carton)
  • VMRS: 034-002-031
  • Product Type: Pigtail
  • # of Wires: 4
  • Style: Y-Adapter
  • Warranty: 1 Year
Features & benefits
  • Blunt-cut wires
  • Standard 4-Pin Hard Shell connector for the 4-in-1 Stop Tail Turn Light with integrated back-up
  • Hard Shell connection to vehicle
  • Mates with Grote and competitive lamps using Hard Shell SuperSeal 1.5 series connectors
