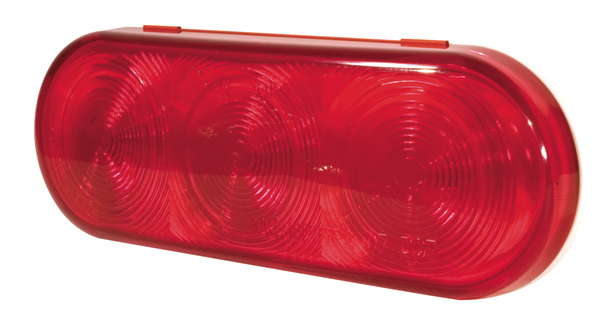

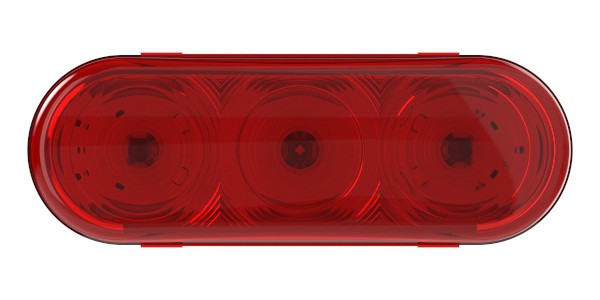

Grote Select™ Oval LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

54172Female Pin

54172Female Pin

  • 54172 360 thumbnail
  • 54172 thumbnail

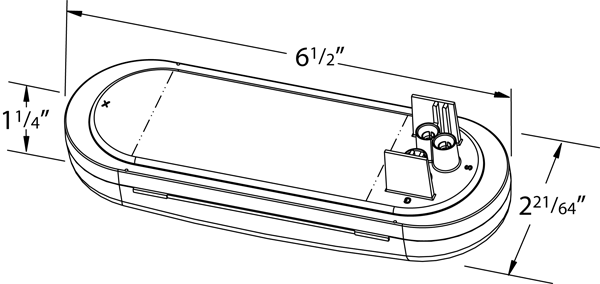

  • Grote product drawing - grote select led oval female pin thumbnail
  • 54172 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12 V
  • Amperage: 0.04–0.48 A
  • Mounting Type: Grommet
  • Connection Type: Female Pin
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: I6, P, S, T, P2
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • Product Line: Grote Select™
  • Shape: Oval
  • Warranty: 2 Years
Features & benefits
  • Fits current mounting flanges and grommets
  • Female pin connection accepts all popular connectors
  • Specially formulated encapsulant potting protects against moisture, vibration, and corrosion
