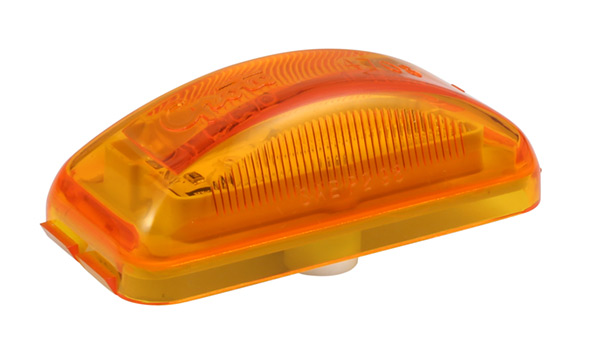

3" SuperNova® LED Clearance Marker Lights

Grote's 3" SuperNova LED Clearance Marker Lights have tin-plated, solid brass terminals to resist corrosion and eliminate failure-causing leak paths.
Grote Loading Ajax Spinner

47083Amber

47083Amber

  • 3 supernova led clearance marker light amber thumbnail

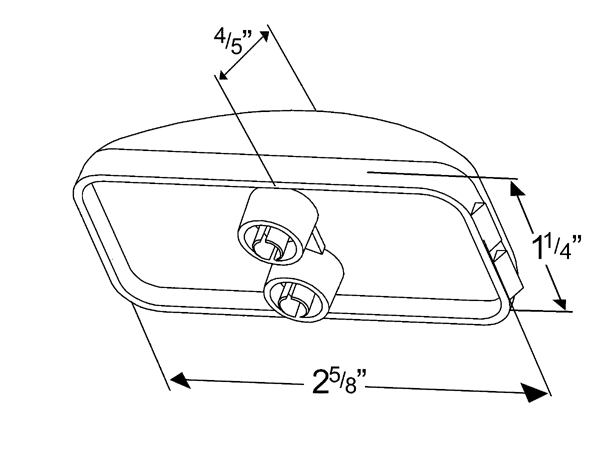

  • 47083 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Product Line: SuperNova®
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Lens Color: Amber
  • Shape: Rectangular
  • Amperage: .06A
  • Size: 3"
  • Functions: P2
  • Regulations: FMVSS 108
  • VMRS: 034-004-253
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Product Type: Clearance Marker
  • Housing Color: White
  • Warranty: 10 Years
  • Voltage: 12V
  • Bulk Pack #47083-3: 48
Features & benefits
  • Encapsulant potting for total circuit board protection
  • Tin-plated, solid brass terminals are sealed to housing to resist corrosion and eliminate failure-causing leak paths
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick retrofit
  • Hermetic lens-to-housing seal
