Sentry Light Pigtails

Grote Loading Ajax Spinner

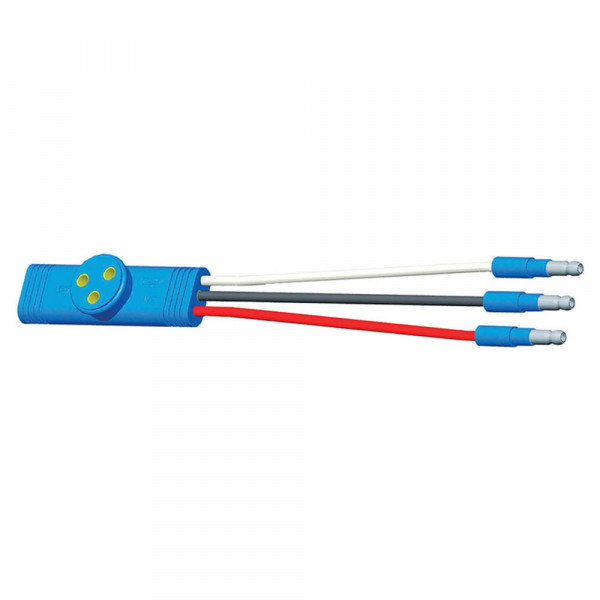

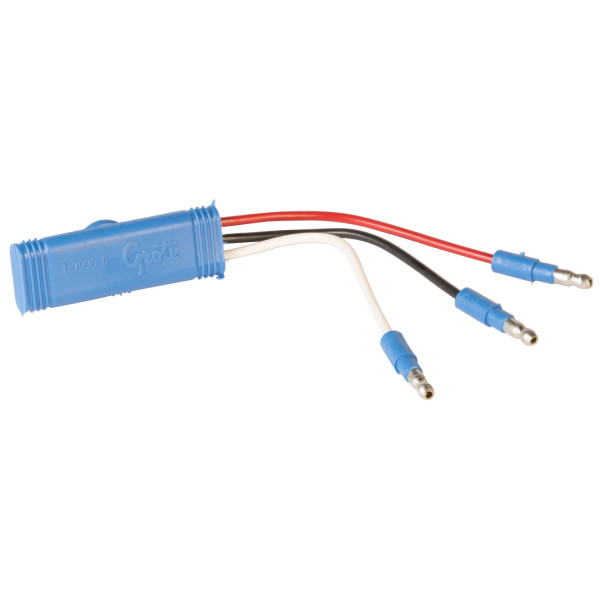

66904.180" Male Terminals, Ground Return

66904.180" Male Terminals, Ground Return

  • 66904 thumbnail
  • 66904 - drawing thumbnail
  • 66904 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side One: Slim-Line .180" Male Bullet
  • Connector Side Two: Sentry Light
  • Wire Material: GPT
  • Connector Quantity: 4
  • Wire Gauge: 14 GA
  • Connection Type: Slim-Line .180" Male Bullet, Sentry Light

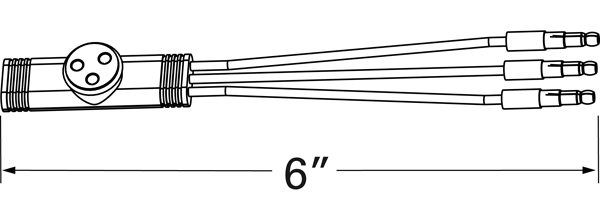

  • Length: 1/2 (6")
  • Wire Length: 5"
  • Fits: 5206-, 5202-, and 5306- Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-042
  • Diameter: 4"
  • Product Type: Pigtail
  • # of Wires: 3
  • Style: Pigtail
  • Shape: Round
  • Warranty: 1 Year
Features & benefits
  • O-ring helps prevent moisture and corrosion
  • Factory-molded plugs for use with ULTRA-BLUE-SEAL
  • Sealed plug-in pigtail for 5206-, 5202-, and 5306- lamps
