Adapter Plugs

For use with 4" round and oval stop tail turn lights, Grote's line of adapter plugs includes both female-to-male pin lamp termination and male-to-female pin lamp termination.
Grote Loading Ajax Spinner

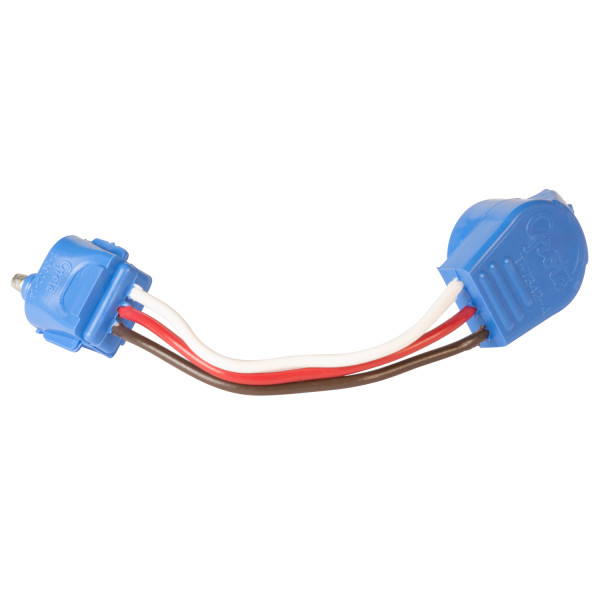

66831Male Pin to 90° Female Pin Termination

66831Male Pin to 90° Female Pin Termination

  • 66831 thumbnail

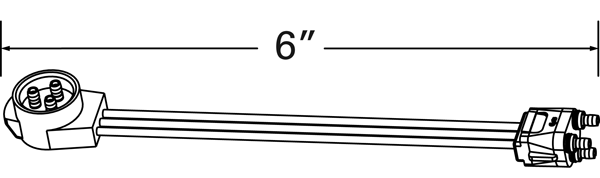

  • 66831 - drawing thumbnail
  • 66831 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: Straight PL-3
  • Wire Material: GPT
  • Connector Quantity: 2
  • Connector Side One: Male Pin
  • Wire Gauge: 16 GA
  • Connection Type: Male Pin, Straight PL-3
  • Length: 6"
  • Wire Length: 5"
  • Fits: Female pin Lamps
  • Pack Quantity: Individual (12), Bulk
  • VMRS: 034-002-031
  • Product Type: Adapter Plug
  • # of Wires: 3
  • Style: Pigtail
  • Warranty: 1 Year
  • Bulk Pack #66831-3: 0
Features & benefits
  • Male Pin to 90° Female Pin Termination
  • For use w/ 4" round and oval, S/T/T lamps
  • Female-to-male pin lamp termination, and male-to-female pin lamp termination
