Automatic Electronic Dome Light Switches with Timer

Grote's automatic dome light switches allows for multiple, simple ground-sensing switches while maintaining the integrity and reducing the overall component number of the interior lighting system. The timer is factory pre-set for 40 minutes on-time and can be manually shut off or automatically when the vehicle experiences forward/backward acceleration.
Grote Loading Ajax Spinner

44490PIR Module Switch

44490PIR Module Switch

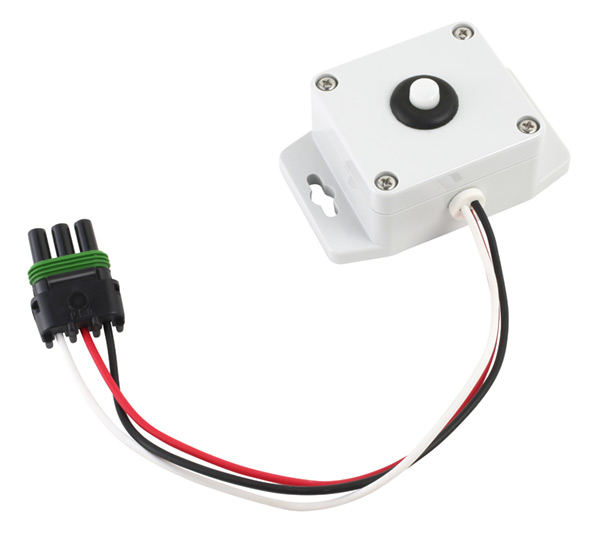

  • PIR Module Switch thumbnail

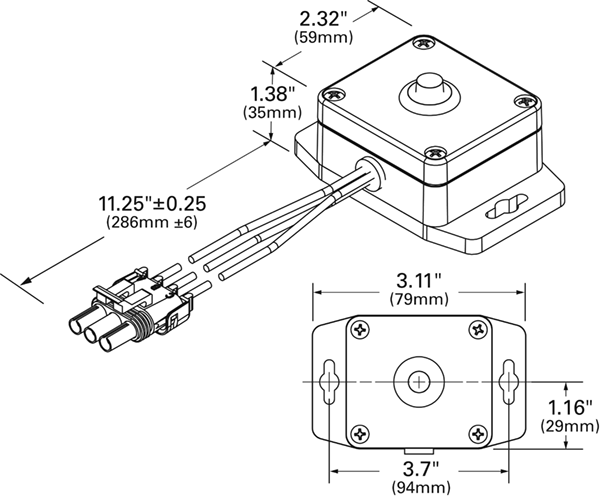

  • PIR Module Switch Line Drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Gray
  • Housing Color: Gray
  • Amperage: 15A (max)
  • Mounting Type: Screw
  • Connection Type: Delphi Weather Pack
  • Operating Temperature: -20C to 50C (-4F to 122F)
  • # of Wires: 3
Features & benefits
  • The timer is factory pre-set for 3 minutes on-time
  • For use with 61J11 dome lamp
  • Reduces the overall component number of interior lighting system
  • Automatic shut-down of circuit for no-fuss on/off
  • Four wire design
  • Eliminates tapping into the air brake delivery system
Find a Local Distributor

Customer reviews

  • It doesn't look as though anyone has left a review for this product yet, be the first?
Leave a review keyboard_arrow_right

I consent to my data being processed and published by Grote Industries

I would like to be added to the Grote Industries email marketing list.

By ticking this checkbox, you are agreeing that we can process and securely store your data. Your review, rating, your first name and the initial of your last name will be published on the website. Any of your other personal information such as your email address will only be used for administrative purposes in accordance with our privacy policy.

This is a response from the server

Any HTML tags (such as links) will be automatically removed, this helps us to reduce spam. Reviews are moderated by an administrator before they will appear on the website.
rolling logo ajax spinner

Please rate the selected product out of 5.

Similar products you may be interested in

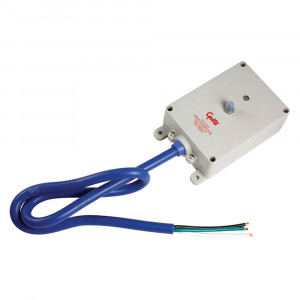

Electronic Dome Light Switch, Full Feature, Surface Mount, Gray
