Trailer Cable

Grote offers low-temp, PVC and ABS trailer cable in 50, 100, 250 and 500 foot spools. All are constructed of 100% pure copper wiring. Grote trailer cable comes in a variety of gauges and jacket materials. We provide consistent communication from the front to the back of your truck or trailer system.
Grote spinner logo

82-5606PVC, Length 100'

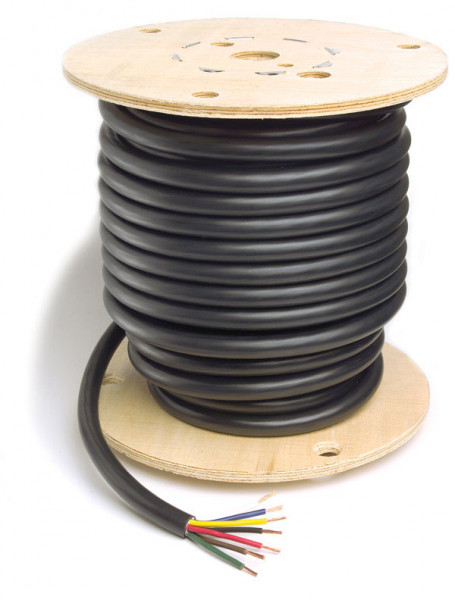

  • Trailer Cable, 6/12 & 1/10 Gauge, 7 Conductor, Wire Length 100' thumbnail
Technical specifications
  • Color: Yellow, Red, Green, Black, White, Blue, Brown
  • Length: 100'
  • Operating Temperature: -40°C (-40°F) to 80°C (176°F)
  • Voltage: Rated to 60V
  • Pack Quantity: 1
  • Gauge: 1/10-6/12 Ga
  • Standards: SAE J1128
  • Conductor: 7
  • Outside Diameter: .685"
  • Strand: 19
  • Insulation/Protection: PVC
  • Material: 100% Copper
  • Package Type: Spool
  • Style: PVC

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Yellow, Red, Green, Black, White, Blue, Brown
  • Length: 100'
  • Operating Temperature: -40°C (-40°F) to 80°C (176°F)
  • Voltage: Rated to 60V
  • Pack Quantity: 1
  • Gauge: 1/10-6/12 Ga
  • Standards: SAE J1128
  • Conductor: 7
  • Outside Diameter: .685"
  • Strand: 19
  • Insulation/Protection: PVC
  • Material: 100% Copper
  • Package Type: Spool
  • Style: PVC
Features & benefits
  • Used for wiring trucks and trailers; Jacket provides protection from weather and abrasive materials
  • Designed for 12V and 24V systems; made in North America
  • Meets SAE J1128 specifications; rated to 60V; ABS cable meets SAE J2394 specifications
