OEM-Spec PTC Composite Fittings

Grote OEM-Spec Push-to-Connect (PTC) Fittings deliver secure, one-touch connections that accelerate assembly and reduce installation labor. The rugged composite body is engineered to withstand vibration, chemicals, and UV exposure—minimizing failures in the field, reducing repair frequency, and keeping vehicles on the road and out of the shop.

Grote Loading Ajax Spinner

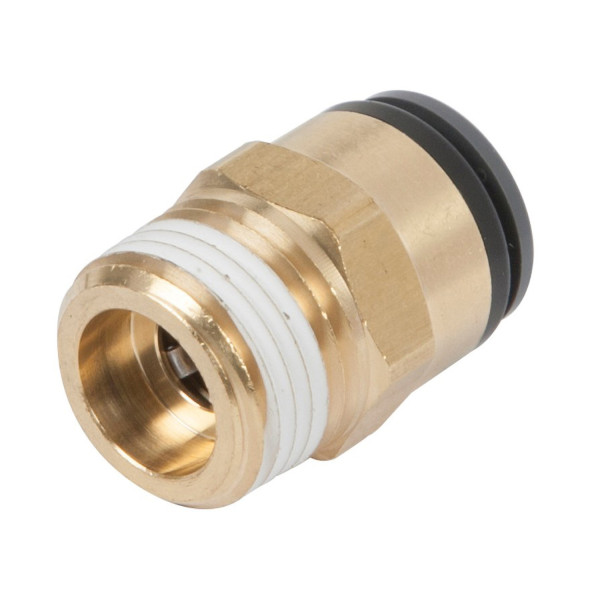

81-0235-PCMale Connector 1/4” X 3/8"

81-0235-PCMale Connector 1/4” X 3/8"

  • 81-0235-PC thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Composite
  • SAE, J560, UL, ASTM Standards: SAEJ2494-3, DOT FMVSS 49 CFR 571.141
  • Color: Black
  • Series: Male Connector
  • Connection Type: Push-To-Connect
  • Operating Temperature: -40°C (-40°F) TO 60°C (140°F)
  • Fits: DOT / J844 Nylon Tubing
  • Pack Quantity: 10
  • Operation: 145 PSI (1.0 MPa)
  • VMRS: 013-010-276
  • Package Type: Retail Polybag
  • Product Type: Composite Fitting
  • Chemical Resistance: Superior
  • ROHS: Yes
  • Warranty: 1 Year
  • Product Line: OEM-Spec PTC
Features & benefits
  • Designed for heavy-duty air brake applications, these fittings deliver dependable performance under vibration, pressure, and temperature extremes.
  • Push-to-connect technology with factory-applied thread sealant speeds installation while helping ensure secure, leak-free connections.
  • Durable composite housing and stainless-steel internal components offer exceptional strength without the weight of traditional metal fittings.
  • Enhanced sealing technology and robust tube retention provide reliable performance in both extreme cold and everyday operating conditions.
  • SAE and DOT compliant construction provides confidence in safety, reliability, and long-term fleet performance.
  • Engineered to resist vibration, chemicals, and harsh road conditions, helping reduce maintenance and unexpected downtime.
