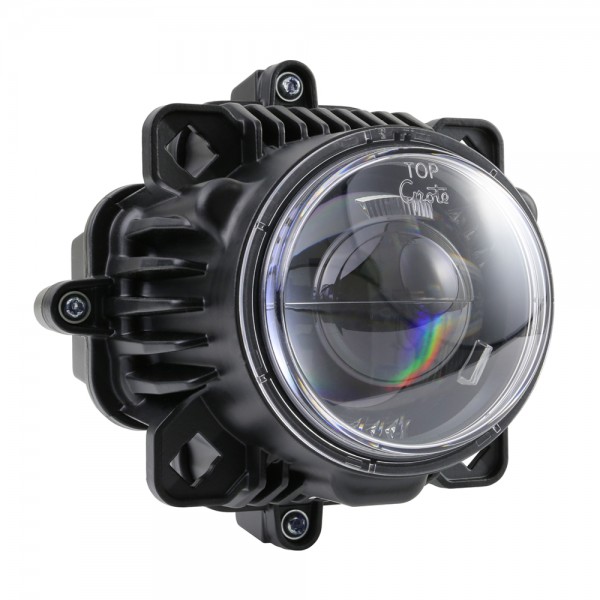

64X11 - 90mm LED Headlamps
Sorry, this product is obsolete...
64X11
Technical specifications
- Amperage: 3.2 A @ 14 V - HB, 1.6 A @ 14 V - LB
- Ingress Protection: IP69K
- Connection Type: Integrated 4-pin DT connector
- Application: On-Highway, Off-Road
- High/low Voltage Limits: 9/32 V
- Color Temperature: 5700 K
- Operating Temperature: -40°F (-40°C) to 185°F (85°C)
- Lens Color: Clear
- Mounting Type: 3-point using adjustment hardware, 2- and 4-point rigid
- Lumens: 650 Effective - LB, 1300 Effective - HB
- Pack Quantity: 1
- Heated (Y/N): N
- Dimensions: 152 x 152 x 129 mm (H/W/D)
- Housing Color: Black
- Material: Lens: Hard-Coated Polycarbonate, Housing: Powder-Coated Aluminum
- Voltage: 9-32V
- Weight: 3lb (1350 grams)
- Shape: Round
- Regulations: ECE R149 Symmetric
- Moisture Resistancy: IP69K
- Product Type: LED Headlamp
- Package Type: Individual Box
- ROHS: Yes
- Warranty: 3 Years
- Watts: 47W - High Beam, 23W - Low Beam
This product is obsolete
Features & benefits
- 90mm diameter lens
- Mounting system with included adjustment rods designed to replace standard 90mm halogen headlamps
- Hard-coated, high-impact polycarbonate lens
- Cast-aluminum housing with sealed integrated connector
- Compact lamp profile to fit most existing applications
- 9V - 32V multi-volt design
- IP69K rated for maximum protection against dust and moisture intrusion
This product is obsolete
