17" Low-Profile LED Mini Light Bars

A low profile LED mini light bar that provides high performance warning and signaling benefit for a wide variety of special application needs. Permanent mount and magnet mount options available.
Grote Loading Ajax Spinner

76943Permanent Mount, Amber w/ Clear Lens

76943Permanent Mount, Amber w/ Clear Lens

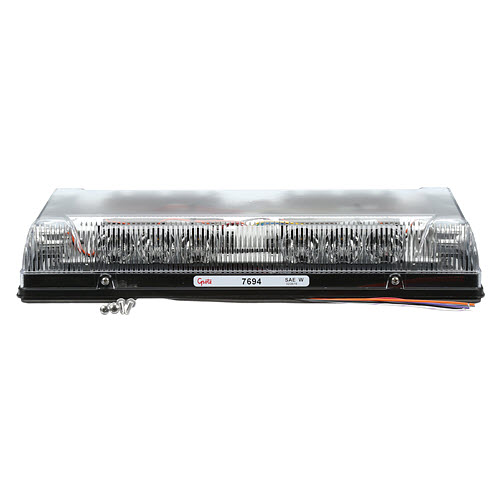

  • 76943 - 17" Low-Profile LED Mini Light bar 360 thumbnail
  • 76943 - 17" Low-Profile LED Mini Light bar thumbnail

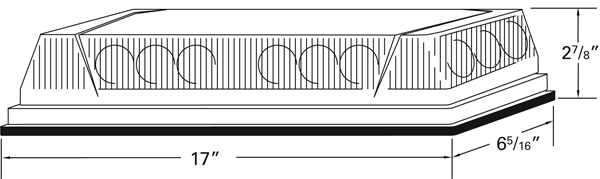

  • 76943 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: Amber
  • Lens Color: Clear
  • Voltage: 12V
  • Amperage: 1.2A
  • Class: Class I
  • Gauge: 18 GA
  • Mounting Type: Permanent
  • Connection Type: Blunt Cut
  • Size: Low Profile, 17"
  • Height: 2.87"
  • Length: 6.32"
  • Standards: SAE J845
  • VMRS: 034-001-021
Features & benefits
  • Includes 6" pigtail
  • Built-in electronic flasher with 46 Scan-Lock™ flash patterns including 4 simulated rotation patterns
  • Low-profile light bar provides high performance characteristics of LED lighting in a small size
  • Six internal LED modules provide 360° light output
  • Permanent mount on 14 1/16" x 3 7/16" hole centers
  • Mounting hardware and instructions included
