Class I LED Mini Light Bars

Grote Loading Ajax Spinner

78020Permanent Mount, Amber/Blue, 12V/24V

78020Permanent Mount, Amber/Blue, 12V/24V

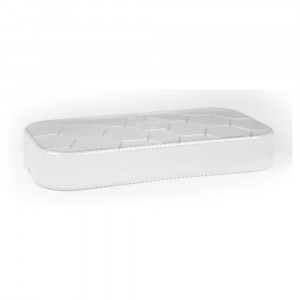

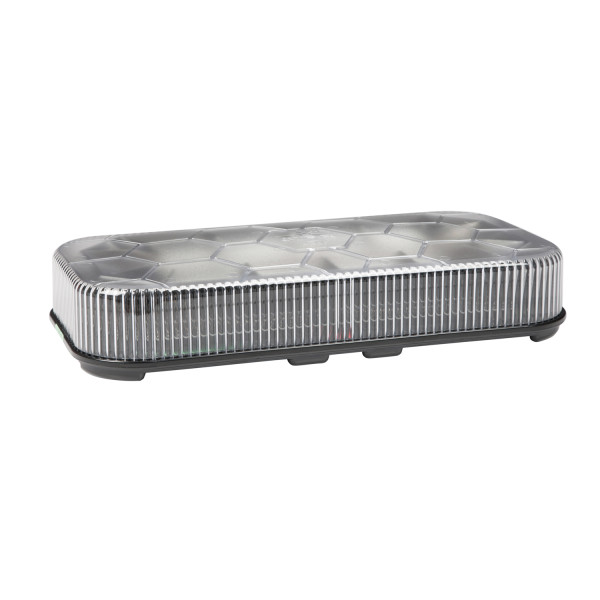

  • 78020 thumbnail

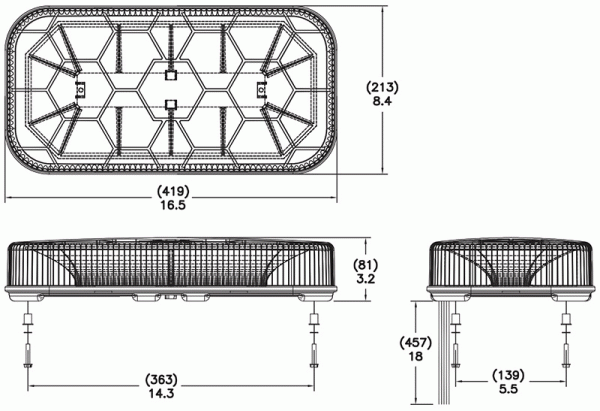

  • drawing of grote LED Mini Light Bar thumbnail
  • 78020 thumbnail


0 Product Added


Quickly compare up to 5 Grote products...

pdf spinner

Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: Amber, Blue
  • Lens Color: Clear
  • Voltage: 12/24V
  • Amperage: 2.3A
  • Class: Class I
  • Gauge: 18 GA
  • Mounting Type: Permanent
  • Connection Type: Blunt Cut
  • Operating Temperature: -30°C to +50°C
  • Height: 3.2"
  • Length: 16.5"
  • Standards: SAE J845
  • Product Type: Mini Light Bar
  • Shape: Rectangular
Features & benefits
  • S-Link™ System* synchronizing capabilities with up to six other units. Allows for synchronization with other S-Link compatible products
  • Low profile reduces drag and friction
  • 20 customer selectable flash patterns via external pattern select wire
  • Magnetic and vacuum mounted products come complete with an auxiliary power plug with on/off function

Replacements, Tools & Accessories

Application photos

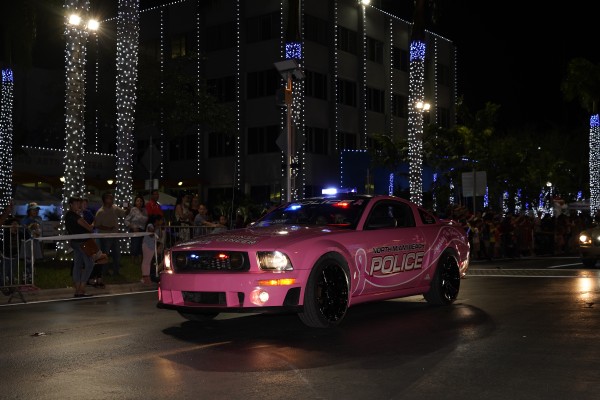

Grote mini LED light bar on cop car
