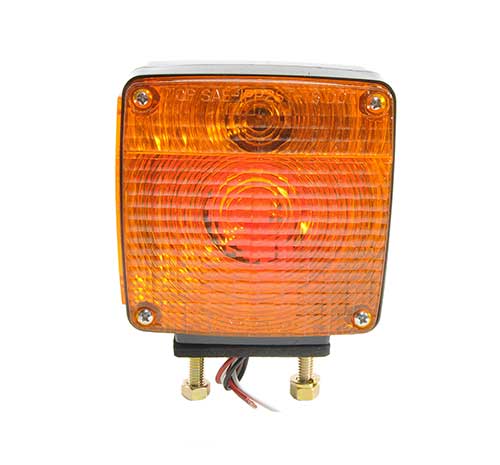

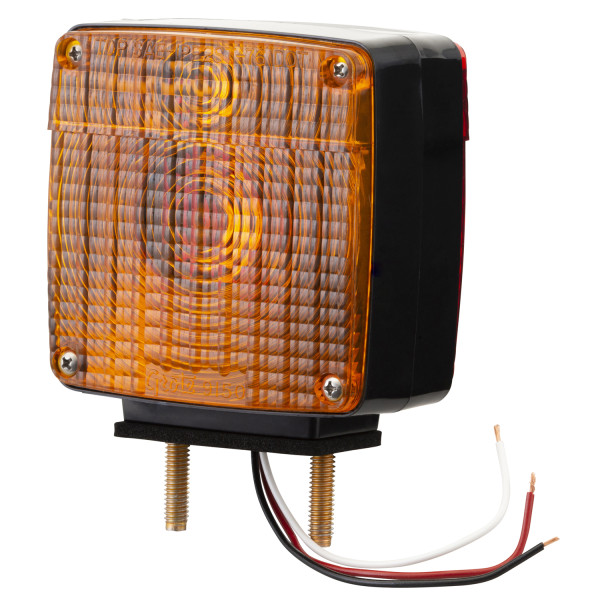

Two-Stud Light with Pigtail

Grote Loading Ajax Spinner

55410RH

55410RH

  • 55410 360 thumbnail
  • 55410 thumbnail

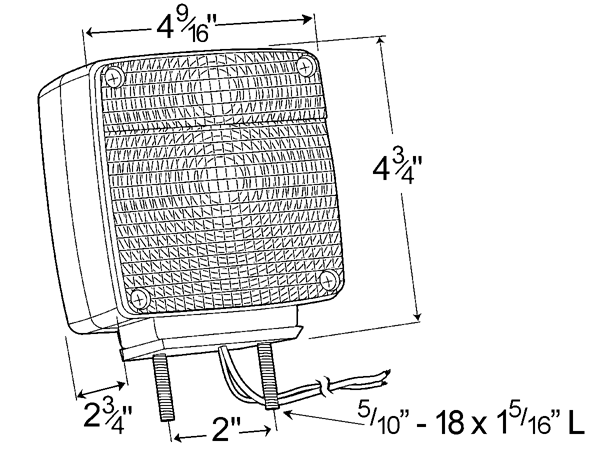

  • Grote product drawing - RH Two-Stud Light with Pigtail thumbnail
  • 55410 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

G5540
Hi Count® Double-Face LED Stop Tail Turn Light with Side Marker

Technical specifications
  • Material: Acrylic Lens, Polycarbonate Housing
  • Color: Red, Amber
  • Lens Color: Red/Yellow
  • Housing Color: Black
  • Voltage: 12 V
  • Amperage: 0.66–2.1 A
  • Mounting Type: Stud
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: A, I, P, P2
  • Bulb: 1156, 32 CP, 193, 2 CP (x2)
  • VMRS: 034-003-057
  • Product Type: Stop Tail Turn with Side Marker
  • Shape: Square
  • Warranty: 1 Year
Features & benefits
  • Replaces Chevrolet®/GMC® 2017747 (RH)
  • 2" mounting centers, high-heat acrylic lens
  • Includes reflex reflector
  • Incorporates sidemarker light
Find a Local Distributor

Replacements, Tools & Accessories

Lens 91503
91503
 Lens 91513
91513
