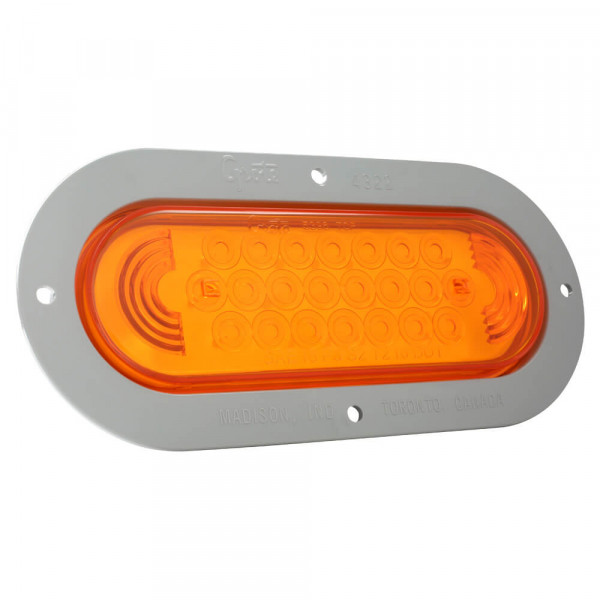

    SuperNova® Oval LED Stop Tail Turn Lights

    Available in both red and yellow, Grote's SuperNova® Oval LED Stop Tail Turn Lights meet specifications for vertical and horizontal mounting options. These S/T/T lights contain an advanced pin-connection system that utilizes tin-plated, solid brass terminals and are potted for total circuit-board protection.
    Grote Loading Ajax Spinner

    53593Gray Theft-Resistant Flange, Male Pin

    53593Gray Theft-Resistant Flange, Male Pin

    • supernova oval led stop tail turn light gray theft resistant 360 thumbnail
    • supernova oval led stop tail turn light gray theft resistant thumbnail
    • thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Acrylic Lens, ABS Housing
    • Color: Yellow
    • Lens Color: Yellow
    • Housing Color: Gray
    • Voltage: 12V
    • Amperage: .28A
    • Mounting Type: Screw
    • Connection Type: Male Pin
    • Size: 6"
    • Regulations: FMVSS 108
    • Functions: P2, S, T, I
    • VMRS: 034-002-059
    Features & benefits
    • Advanced pin-connection system uses tin-plated, solid-brass terminals
    • Encapsulant potting for total circuit-board protection
    • Meets specifications for vertical and horizontal mounting
    • Male pin termination for maximum moisture and corrosion protection

    Replacements, Tools & Accessories

    Adapter Pigtail Two Light 9" Y Adapter Pigtail, Adapter, Female-to-Male Pin, 90° Plug
    66814
     Adapter Pigtail Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return System, Slim-Line .180 Male
    66816
     Adapter Pigtail 66841 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
    66841
     Adapter Pigtail Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
    66845
     Adapter Pigtail 67002 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wire
    67002
     Adapter Pigtail Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wires
    67005
     Bracket Mounting Bracket For 6" Oval Lights, 90° Angle Bracket, Black
    43362
     Bracket "Z" Mounting Bracket For Oval Light
    43952
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Gray
    43220
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Chrome Plated
    43223
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Black
    43222
     Bracket Mounting Bracket For Oval Lights, Black
    43100
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Steel
    43723
     Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Polycarbonate, Black
    42152
     Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Chrome
    42153
     Bracket Stainless Steel Security Ring
    42103
     Bracket Mounting Bracket For 6" Oval Lights, Black
    43172
     Grommet Grommet For 6" Oval Lights, Open Grommet
    92420
     Grommet Grommet For 6" Oval Lights, Closed Back
    92720
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire Plug-In Pigtails for Male Pin Lights, 10" Long, Chassis Ground, Slim-Line .180 Male
    66842
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wire
    67013
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire 90° Plug-In Pigtails for Male Pin Lights, 10" Long, Chassis Ground, Slim-Line .180 Male
    66846
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire 90° Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wires
    67016
     Pigtail STT 3-Wire 66815 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return, Slim-Line .180 Male
    66815
     Pigtail STT 3-Wire Adapter Plugs for Hard Shell Connectors, 6" Long, Competitive Harness to Male Pin Connector
    67006
     Pigtail STT 3-Wire Two Light 9" Y Adapter Pigtail, Adapter, Male-to-Male Pin, Straight
    66813
     Pigtail STT 3-Wire Midturn Adapter Pigtail, Adapter, Male-to-Male Pin, (2) Additional Standard .180 Receptacles
    66823
     Pigtail STT 3-Wire Adapter Plug, 6" Long, Female Pin to Male Pin Termination
    66830
     Pigtail STT 3-Wire Adapter Plug, 6" Long, Female Pin to 90° Male Pin Termination
    66836
