Plastic Housing Light

Grote Loading Ajax Spinner

50222Double Contact

50222Double Contact

  • plastic housing light double contact red thumbnail

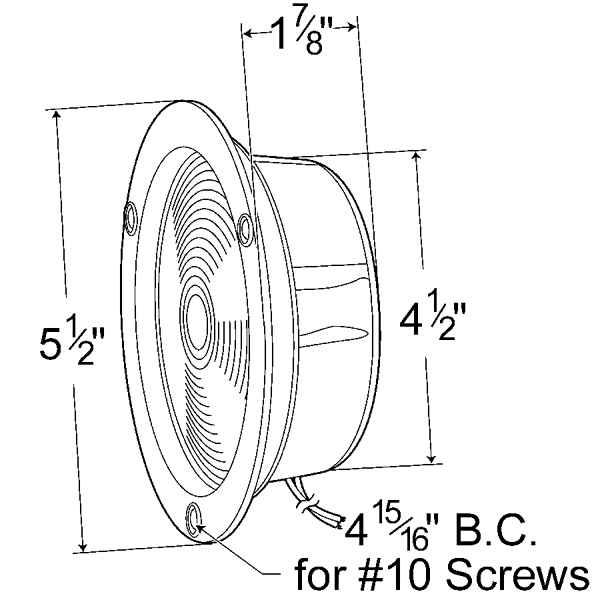

  • Grote product drawing - plastic housing light double contact thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Polypropolene housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: .6A-2.1A
  • Mounting Type: Screw
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: P2, P3, S, T, I
  • Bulb: 1157, 32, 3 CP
  • VMRS: 034-002-058
  • Diameter: 4"
  • Product Type: Stop Tail Turn
  • # of Wires: 2
  • Shape: Round
Features & benefits
  • Two-wire pigtail
  • Snap-ring lens application
Find a Local Distributor

Replacements, Tools & Accessories

Lens 90012
90012
 Pigtail 68130
68130
