Grote Select™ 4" LED Stop Tail Turn Lights

Our Grote-Select 4-inch LED stop tail turn lights have a faster light-on response time than similar incandescent bulbs, which means a greater stopping alert distance. This helps prevent accidents and improve the visibility of your vehicles on the road. These lights use existing pigtails and wiring, so you can retrofit your vehicles without costly wiring upgrades. They also help prevent theft by mimicking the look of incandescent lighting, all while still using more effective and efficient LED technology to improve the life and decrease the current draw from the lights. Moisture intrusion is prevented with a hermetic lens-to-housing seal, helping to increase the life of the light even more.
Grote Loading Ajax Spinner

54342Female Pin Termination

54342Female Pin Termination

  • Grote Select™ 4" LED Stop Tail Turn Lights, Female Pin Termination 360 thumbnail

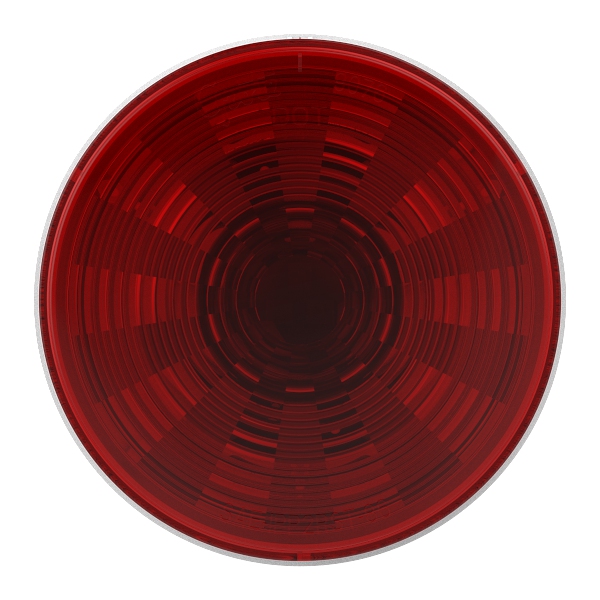

  • Grote Select™ 4" LED Stop Tail Turn Lights, Female Pin Termination thumbnail

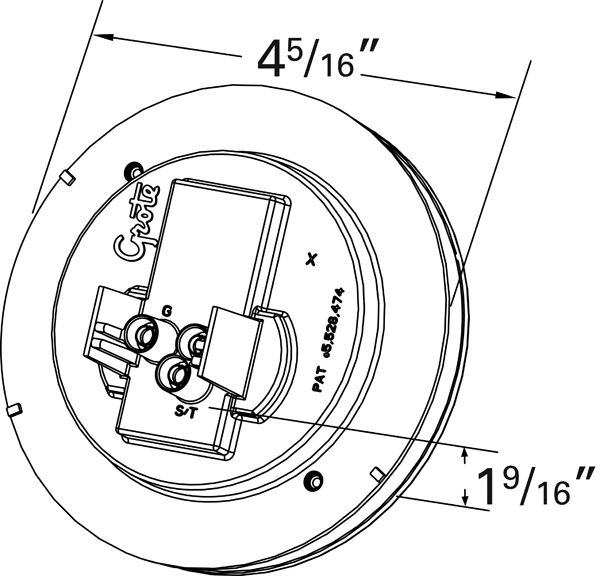

  • Grote product drawing - Grote select led stop tail turn light with female pin termination thumbnail

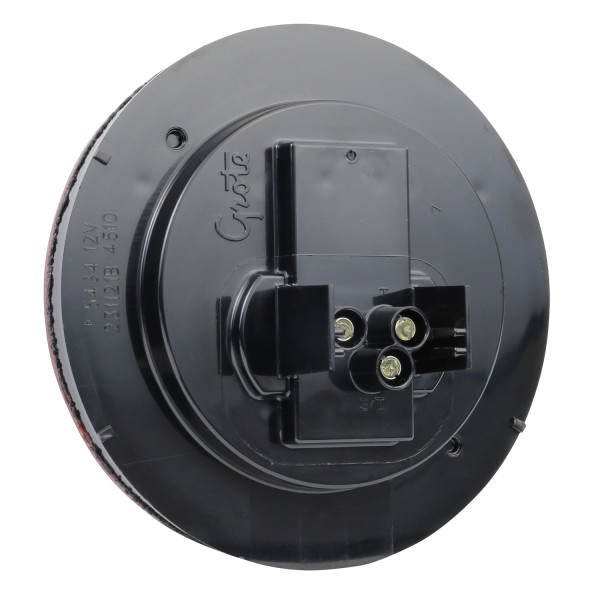

  • Grote Select™ 4" LED Stop Tail Turn Lights, Female Pin Termination, Back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12 V
  • Amperage: 0.03–0.24 A
  • Mounting Type: Grommet
  • Connection Type: Female Pin
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: I, P2, S, T
  • VMRS: 034-002-059
  • Diameter: 4"
  • Product Type: Stop Tail Turn
  • Product Line: Grote Select™
  • Shape: Round
  • Warranty: 2 Years
Features & benefits
  • With a wider range of voltage, lights can be used virtually anywhere
  • Uses existing pigtails and wiring for cost-effective retrofit
  • Fits all Grote bracket, grommet, & flange mounting options
  • Hermetic lens-to-housing seal prevents moisture intrusion
  • Resembles incandescent lights to alleviate theft concerns
  • Faster light-on response time provides greater stopping alert distance than incandescent lamps
  • Longer life and less current draw than standard incandescent lamps leaves more voltage available to other vehicle systems
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 93552
93552
 Fits LED Stop Tail Turn Power Module with Side Marker
51002
 Fits LED Stop Tail Turn Light Power Module
51012
 Bracket 51090
51090
 Grommet 91740
91740
 Grommet 91950
91950
 Pigtail STT 3-Wire 66812
66812
 Pigtail STT 3-Wire 66843
66843
 Pigtail STT 3-Wire 66844
66844
 Pigtail STT 3-Wire 66825
66825
 Pigtail STT 3-Wire 67000
67000
 Bracket 93683
93683
 Bracket 93553
93553
 Bracket 93190
93190
 Bracket 43253
43253
 Bracket 92510
92510
 Bracket 92511
92511
 Bracket 92512
92512
 Bracket 43572
43572
 Bracket 43655
43655
 Bracket 43732
43732
 Pigtail STT 3-Wire 67090
67090
