    7" Single-Face Lights

    Grote Loading Ajax Spinner

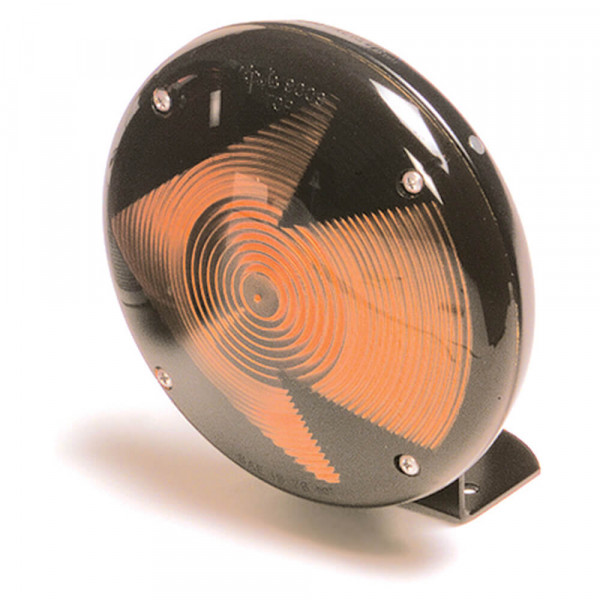

    78313Blunt Cut Pigtail w/ Arrow Lens

    78313Blunt Cut Pigtail w/ Arrow Lens

    • 7 single face light blunt cut pigtail arrow lens yellow thumbnail
    • thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Acrylic Lens, Steel Housing
    • Color: Yellow
    • Lens Color: Yellow
    • Housing Color: Black
    • Voltage: 12V
    • Amperage: 2.1A
    • Mounting Type: Bracket
    • Connection Type: Blunt Cut
    • Size: 7"
    • Application: School Bus
    • Regulations: FMVSS 108
    • Functions: S, I
    • Bulb: 32 CP, 1156
    • VMRS: 034-003-071
    • Diameter: 7"
    Features & benefits
    • Yellow arrow design for rear turn only
    • Two-stud or bracket mounting
    • 78303 and 78313 not for front turn use
    • Heavy-gauge formed steel housing

    Replacements, Tools & Accessories

    Bracket 7" Jumbo Mounting Bracket, Black
    43282
     Bracket Mounting Bracket For 7" Round Lights, Black
    93982
     Lens Yellow Stop Tail turn Replacement Lens With Arrow
    90103
