    SuperNova® 4" Dual-System LED Backup Lights

    The SuperNova 4" Dual-System LED Backup Lights are equipped with encapsulate potting which allows for total circuit board protection. The hard-coated lenses offer long-term protection from harmful UV rays. With an advanced pin system and the same UBS pigtail as male incandescent, these lights are the bright choice for a vehicle of any kind.
    Grote Loading Ajax Spinner

    62391

    62391

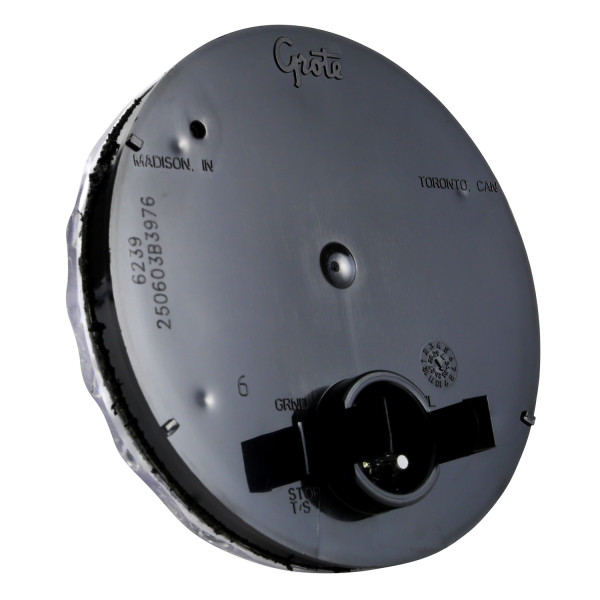

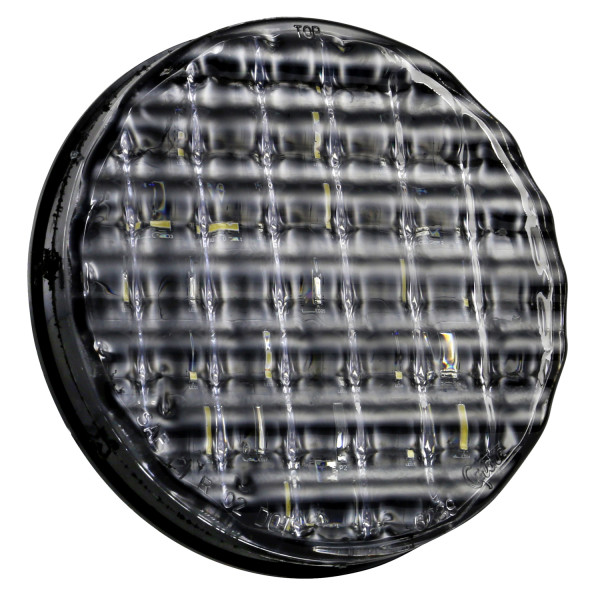

    • 4" Dual System LED Backup Light thumbnail

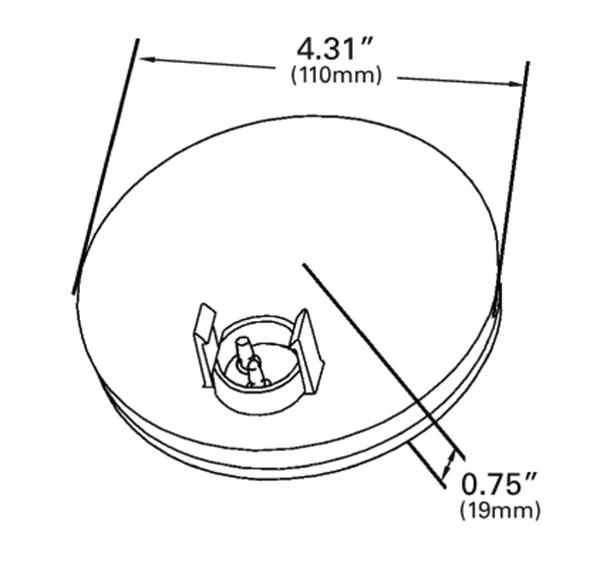

    • 62391 - drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Polycarbonate
    • Color: White
    • Lens Color: Clear
    • Housing Color: Clear
    • Voltage: 9-16V
    • Amperage: .25A
    • Mounting Type: Grommet, Bracket
    • Connection Type: Male Pin
    • Size: 4"
    • Regulations: FMVSS 108
    • Functions: R(2)
    • VMRS: 034-003-142
    Features & benefits
    • Requires two lamps to meet backup function
    • Uses same UBS pigtail as male incandescent
    • Hard-coated lens for long-term UV protection
    • Encapsulant potting for total circuit board protection
    • Advanced pin system uses tin-plated, solid-brass terminations

    Replacements, Tools & Accessories

    Bracket Security Ring, 4" Round, Steel
    43343
     Bracket Theft-Resistant Flange For 4" Round Lights, White
    92510
     Bracket Theft-Resistant Flange For 4" Round Lights, Black
    92512
     Bracket Theft-Resistant Flange For 4" Round Lights, Chrome Plated
    92513
     Bracket Theft-Resistant Flange For 4" Round Lights, Steel
    43253
     Grommet Grommet For 4" Round Lights, Open Grommet
    91740
     Grommet Closed Back Grommet For 4" Round Lights, Black
    91950
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire Plug-In Pigtails for Male Pin Lights, 10" Long, Chassis Ground, Slim-Line .180 Male
    66842
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wire
    67013
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire 90° Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wires
    67016
     Pigtail BU 2-Wire Stop Tail Turn Two-Wire 90° Plug-In Pigtails for Male Pin Lights, 10" Long, Chassis Ground, Slim-Line .180 Male
    66846
     Pigtail BU 2-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return System, Slim-Line .180 Male
    66816
