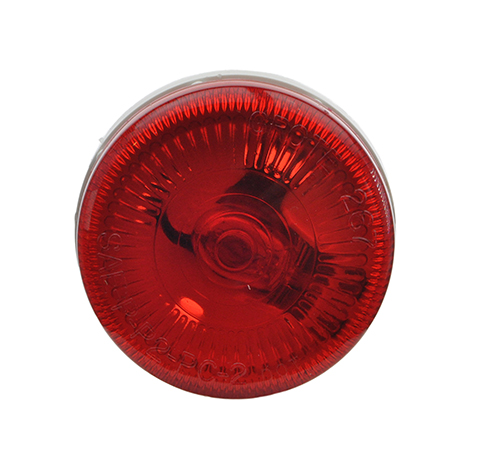

2 1/2" Surface-Mount Single-Bulb Clearance Marker Lights

Snap-on lens for easy bulb replacement, Grote's 2 1/2" Surface-Mount Single-Bulb clearance marker lights are 12,000+ hour, heavy-duty 2 CP wedge-base bulbs.
Grote Loading Ajax Spinner

45412

45412

  • 45412 360 thumbnail
  • 45412 thumbnail

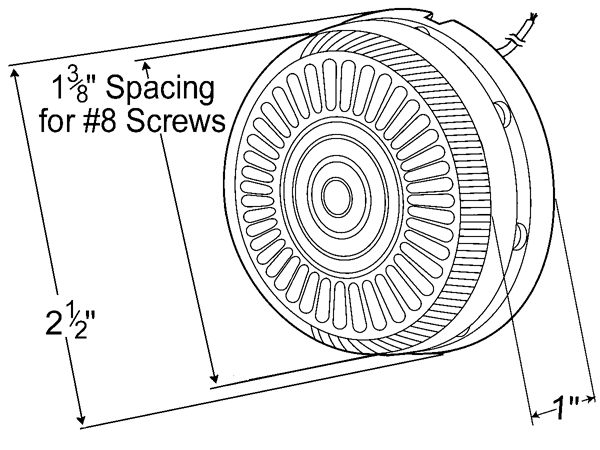

  • 45412 - drawing thumbnail
  • 45412 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polypropolene housing, Acrylic Lens
  • Color: Red
  • Lens Color: Red
  • Amperage: .33A
  • Mounting Type: Surface
  • Connection Type: Blunt Cut
  • Size: 2½"
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: 2 CP, #193
  • VMRS: 034-004-021
  • Diameter: 2.5"
  • Product Type: Clearance Marker
  • Shape: Round
  • Warranty: 1 Year
  • Bulk Pack #45412-3: 0
Features & benefits

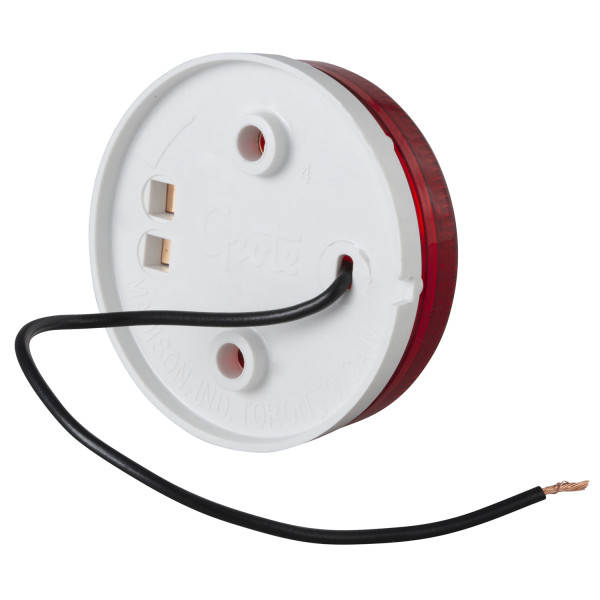

  • Lamp comes with wire inside. To prepare for installation, simply remove lens, feed wire through port in back, and then replace lens.
  • 12,000+ hour bulb
  • OE replacement on Mack
  • Heavy-duty 2 CP wedge-base bulb
  • Snap-on lens for easy bulb replacement
Find a Local Distributor

Replacements, Tools & Accessories

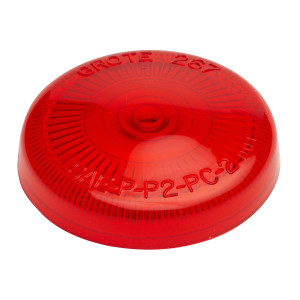

Lens 90162
90162
