SuperNova® 2 1/2" Beehive LED Clearance Marker Lights

Grote's SuperNova® 2 1/2" Beehive LED Clearance Marker Lights has cncapsulant potting for total circuit-board protection with tin-plated, solid brass terminals to resist corrosion.
Grote Loading Ajax Spinner

47223

47223

  • supernova 2 1/2 beehive led clearance marker light amber bulk pack thumbnail

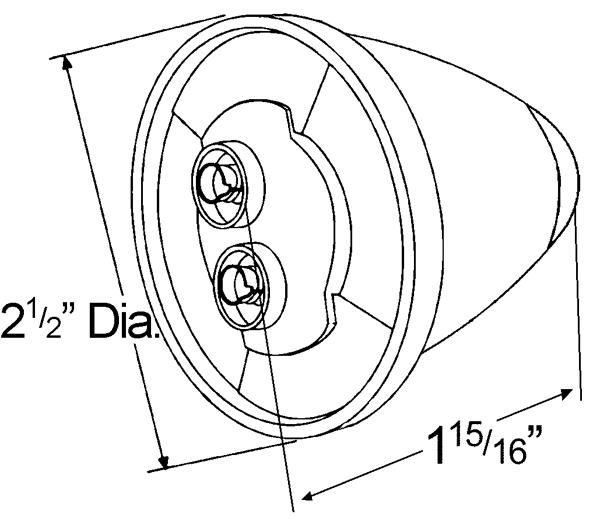

  • 47223 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Amperage: .06A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2½"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-253
  • Diameter: 2"
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Beehive
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens to housing seal
  • Encapsulant potting for total circuit-board protection
  • Tin-plated, solid brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick retrofit
