    SuperNova® 3" Thin-Line LED Clearance Marker Lights

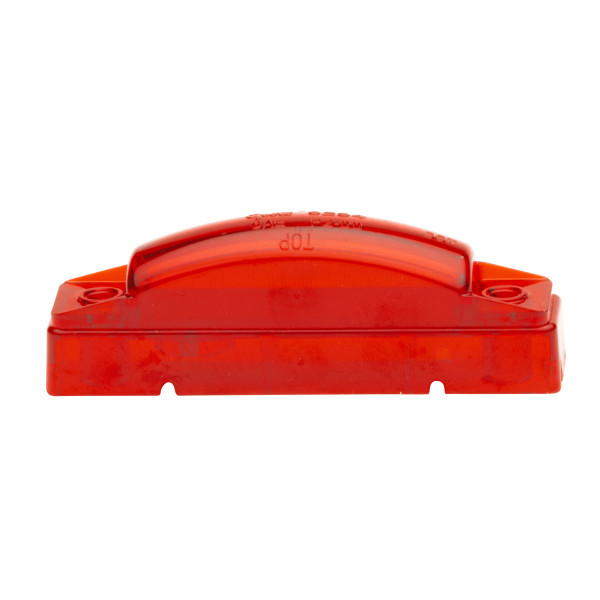

    Grote's SuperNova® 3" Thin-Line LED Clearance Marker Lights with encapsulant potting for total circuit-board protection. Meets PC function when mounted at a 45° angle.
    Grote Loading Ajax Spinner

    47242

    47242

    • supernova thin line led clearance marker light red 360 thumbnail
    • supernova thin line led clearance marker light red thumbnail
    • 47242 - drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Polycarbonate Housing, Polycarbonate Lens
    • Color: Red
    • Lens Color: Red
    • Housing Color: Red
    • Amperage: .06A
    • Mounting Type: Screw
    • Connection Type: Faston Tab
    • Size: 2"
    • Regulations: FMVSS 108
    • Functions: P2
    • VMRS: 034-004-253
    • Style: Thin-Line
    Features & benefits
    • Field-replaceable lens, 3" mounting center
    • Meets PC function when mounted at a 45° angle
    • Encapsulant potting for total circuit-board protection
    • Anti-torque design protects against over-tightening and lens cracking
    • Wire exit holes at ends allow for flow-through harnessing

    Replacements, Tools & Accessories

    Pigtail Thin-Line LED Pigtail, 6" Long, Ground Return
    66931
     Pigtail Thin-Line LED Pigtail, 5" Long, Chassis Ground System
    66930
     Pigtail Triple-Light ID Harness, 60" Long, LED Triple-ID Jumper (36"x12"x12")
    66932

    Customer reviews

    • 47243

      LED and electrical seems well made, structurally is fair with expected stress cracking at attachment points. Cannot understand the point of having a "field replaceable" lens if you do not offer the lens for sale separately from the whole unit though.

      Jon K. Sep 18, 2018
