Beehive Type Light Bars

Grote's Beehive Type Light Bars features 3 beehive lamps with a heat-sealed, splice-on pigtail.
Grote Loading Ajax Spinner

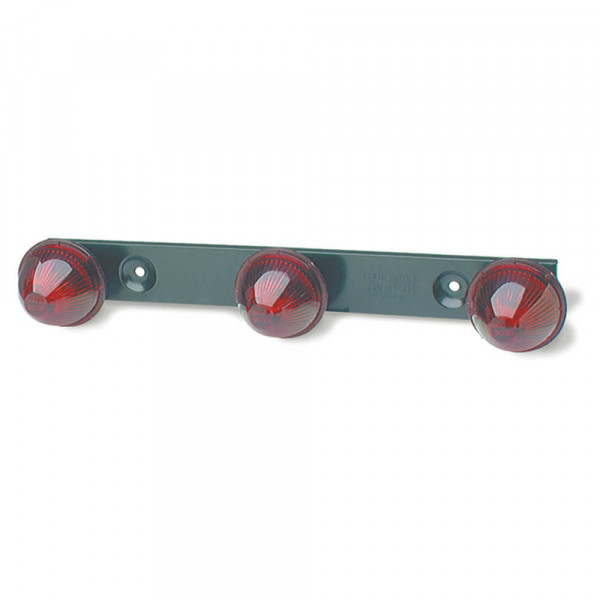

  • Beehive Type Light Bar thumbnail

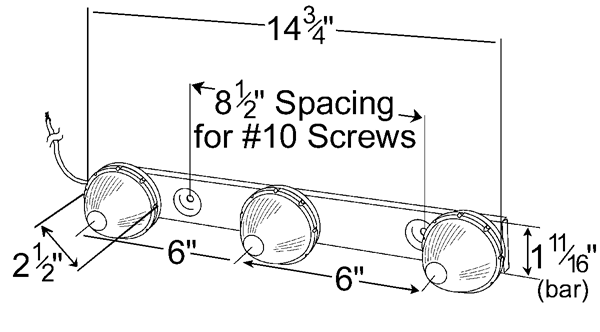

  • 49002 - drawing thumbnail


0 Product Added


Quickly compare up to 5 Grote products...

pdf spinner

Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Steel/ABS Housing
  • Finish: Enamel Coated
  • Color: Red
  • Lens Color: Red
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: 1.77A
  • Mounting Type: Screw
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: P2
  • Bulb: 4 CP, (3) #67
  • VMRS: 034-004-149
  • Product Type: Light Bar
  • Shape: Beehive
Features & benefits
  • Black enamel metal bar
  • Heat-sealed, splice-on pigtail
  • Features 3 beehive lamps
