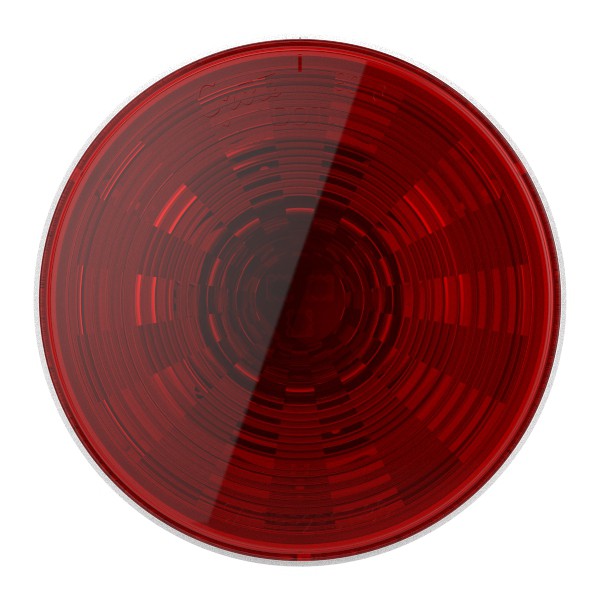

54302 - SuperNova® 4" NexGen™ LED Stop Tail Turn Lights
Sorry, this product is obsolete...
54302
Technical specifications
- Material: Acrylic Lens, ABS Housing
- Color: Red
- Lens Color: Red
- Housing Color: White
- Voltage: 9–32 V
- Amperage: 0.01–0.09 A
- Mounting Type: Grommet, Bracket
- Connection Type: Male Pin
- Size: 4"
- Regulations: FMVSS 108
- Functions: T, S, P2, I
- VMRS: 034-002-059
- Diameter: 4"
- Product Type: Stop Tail Turn
- Product Line: SuperNova®, NexGen™
- Shape: Round
- Warranty: 10 Years
This product is obsolete
Features & benefits
- Less current draw than standard incandescent lights, leaving more power available to other vehicle systems
- With a wider range of voltage, lights can be used virtually anywhere
- Available in Male Pin, Hard Shell or Hardwire terminations
- Fully encapsulated circuitry for total circuit board protection
- Uses existing pigtails and wiring for cost effective retrofit
- Fits all Grote bracket and mounting options
- 20% less current draw than major competitor LED products
- Lower overall weight compared to existing LED products; contributes to better fuel efficiency
- Environmental encapsulant potting for total circuit board protection
- Hermetic lens-to-housing seal prevents moisture intrusion
- Resembles incandescent lights to alleviate theft concerns
- Turn lamp can be utilized in the front or rear position on the vehicle
This product is obsolete
