Ultra Seal G7

    The G7 is available in both 90-degree and straight-in versions to better fit customer applications. Both versions offer a method to seal the back of the receptacle into a molded plug and also offer quick replacement options if needed. The end user has the option to replace only the receptacle, or the entire G7 harness, which is 24 inches long and comes in various sealed termination options. The G7 is a three piece design; the die-cast receptacle, the molded plug and the crush resistant mounting spacer that does not deform if over-torqued when mounting. The plug and spacer work in conjunction to not only seal with the die-cast receptacle, but also with the hole in the trailer wall.
    Grote Loading Ajax Spinner

    8721290 degree Plug & Receptacle blunt cut

    8721290 degree Plug & Receptacle blunt cut

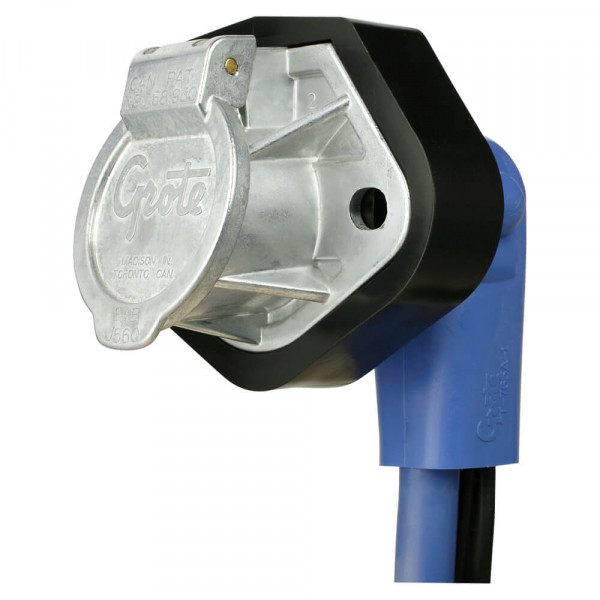

    • 90 degree Plug & Receptacle blunt cut thumbnail
    • 90 degree Plug & Receptacle with standard 0.180 female plugs back thumbnail
    • 87212 - draiwng thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Die-cast Zinc, PVC Plug
    • Gauge: 12-10 GA
    • Standards: SAE J560
    • VMRS: 034-002-036
    Features & benefits
    • Replaceable non-rust, die-cast receptacle, with solid brass pins
    • Receptacle is recessed mounted into the spacer to repel water
    • Thicker, harder durometer mounting spacer won't deform if over-torqued
    • Offered in both straight and 90 degree options to support mounting configurations
