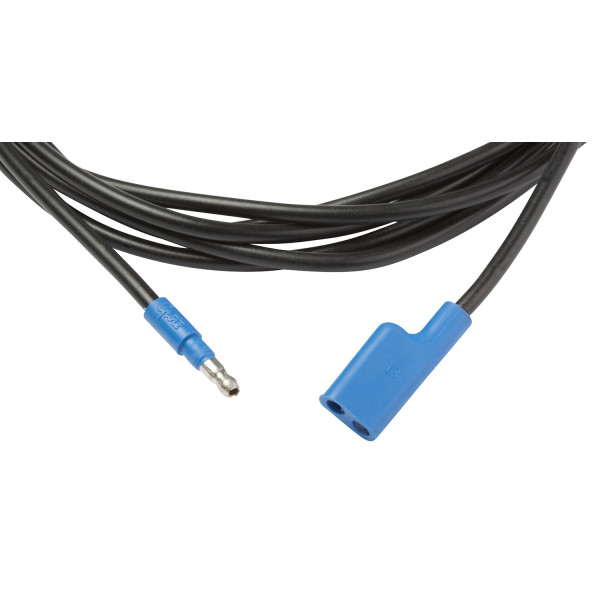

Slim-Line Under Light Male To Slim-Line Under Light Double Females

Grote Loading Ajax Spinner

6612310' 9" Long

6612310' 9" Long

  • 66123 thumbnail
  • 66123 - drawing thumbnail
  • 66123 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Quantity: 2
  • Connector Side One: Double Slim-Line .180" Female Bullet
  • Wire Material: GPT
  • Connector Side Two: Slim-Line .180" Male Bullet
  • Color: Black
  • Wire Gauge: 14 GA
  • Connection Type: Double .180" Slim-Line Female Bullet, Slim-Line .180" Male Bullet
  • Length: 10' 9" (129")
  • Wire Length: 128"
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-023
  • Product Type: Jumper
  • # of Wires: 1
  • Style: Jumper Harness
  • Warranty: 1 Year
Features & benefits
  • Multiple ID lamp jumper
  • Front marker & rear marker lamp jumper
  • Use with 66190
  • Front upper clearance/marker from front receptacle
  • Front lower side marker from front receptacle
