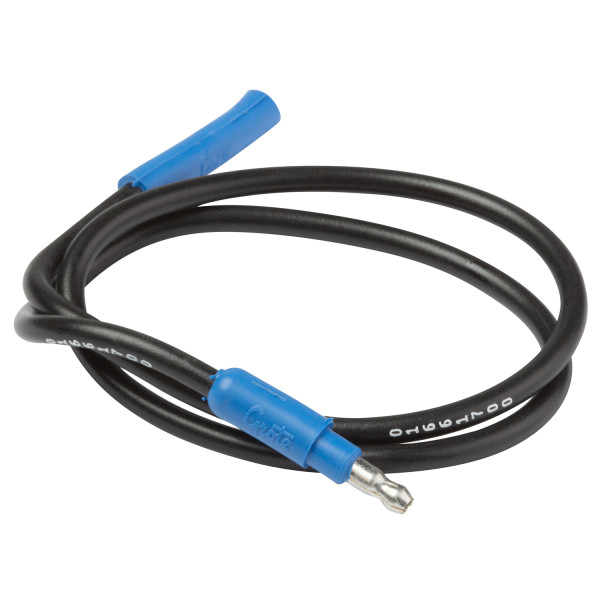

Standard Male to Slim-Line Under Light Female

Grote Loading Ajax Spinner

66170

66170

  • 66170 thumbnail
  • 66170 - drawing thumbnail
  • 66170 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Quantity: 2
  • Connector Side One: Standard .180" Male Bullet
  • Wire Material: GPT
  • Connector Side Two: Slim-Line .180" Female Bullet
  • Color: Black
  • Gauge: 14-1 GA
  • Wire Gauge: 14 GA
  • Connection Type: Standard .180" Male Bullet, Slim-Line .180" Female Bullet
  • Length: 2' (24")
  • Wire Length: 23"
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-023
  • Product Type: Jumper
  • # of Wires: 1
  • Style: Jumper Harness
Features & benefits
  • Rear tracking lamp jumper
