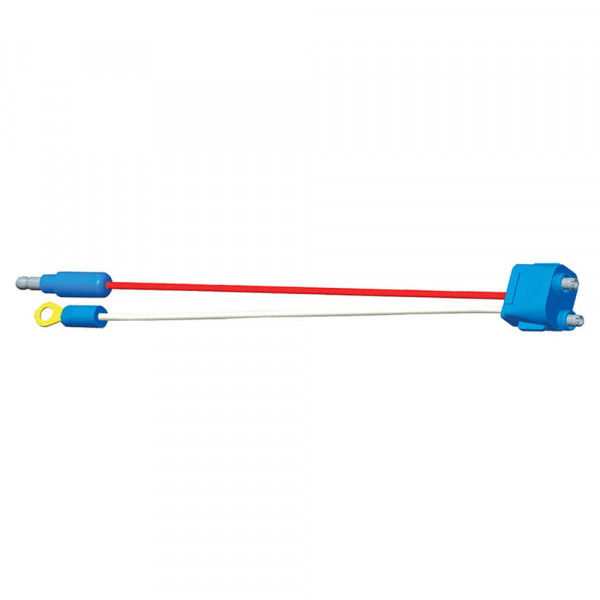

67011 - Two-Wire Plug-In Pigtails for Female Pin Lights

Sorry, this product is obsolete...

67011

Here are some suggestions:

Technical specifications
  • Connector Side Two: Straight PL-3
  • Wire Material: GPT
  • Connector Quantity: 3
  • Connector Side One: Ring Terminal/Standard .180" Male Bullet
  • Wire Gauge: 18 GA
  • Connection Type: Standard .180" Male Bullet/Ring Terminal, PL-3
  • Length: 10 1/4"
  • Wire Length: 10"
  • Fits: Female pin Lamps
  • Pack Quantity: Individual (6 per carton)
  • VMRS: 034-002-031
  • Diameter: 4"
  • Product Type: Pigtail
  • # of Wires: 2
  • Style: Pigtail
  • Shape: Round

This product is obsolete

Features & benefits
  • Single function, Slim-Line .180 Male Bullet, blunt cut, stop and turn
  • Includes dummy pin to help guide the pigtail into lamp
  • Molded #10 ring terminal for frame ground
  • Factory-molded plugs for ULTRA-BLUE-SEAL® trailer wiring system
