Sentry Light Pigtails

Grote Loading Ajax Spinner

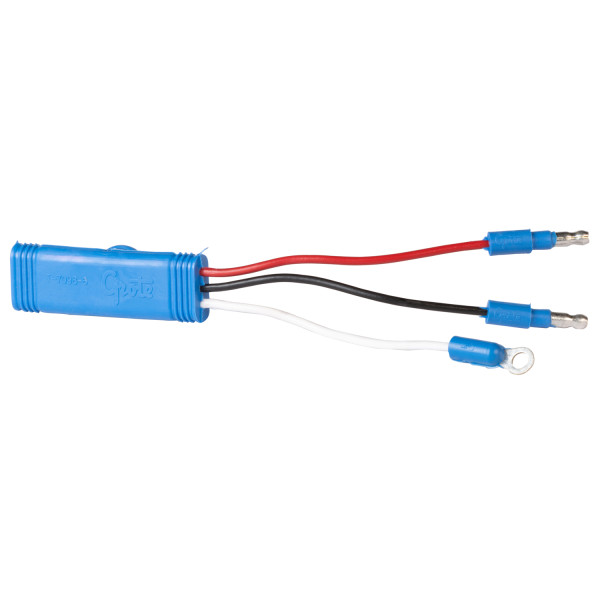

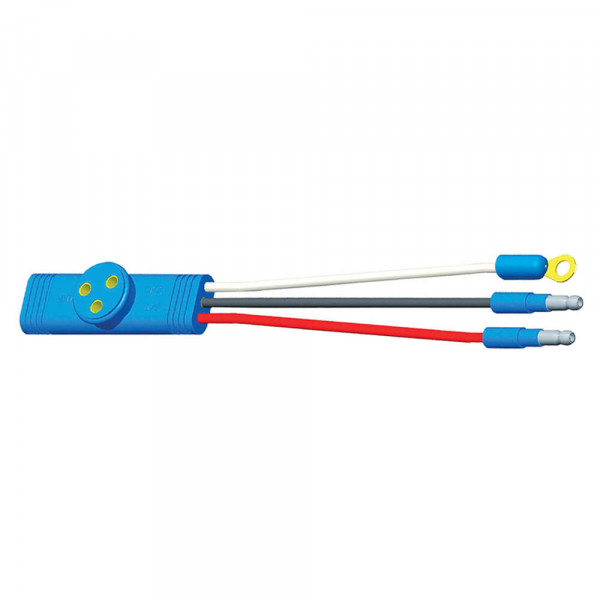

66905.180" Male Pin, Chassis Ground

66905.180" Male Pin, Chassis Ground

  • 66905 thumbnail
  • 66905 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: Sentry Light
  • Wire Material: GPT
  • Connector Quantity: 4
  • Connector Side One: Slim-Line .180" Male Bullet/Ring terminal
  • Gauge: 16-3 GA
  • Wire Gauge: 16 GA
  • Connection Type: Slim-Line .180" Male Bullet/Ring terminal, High-Mount
  • Length: 1/2 (6")
  • Wire Length: 5"
  • Fits: 5206-, 5202-, and 5306- Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-042
  • Product Type: Pigtail
  • # of Wires: 3
  • Style: Pigtail
  • Warranty: 1 Year
Features & benefits
  • O-ring helps prevent moisture and corrosion
  • Factory-molded plugs for use with ULTRA-BLUE-SEAL
  • Sealed plug-in pigtail for 5206-, 5202-, and 5306- lamps
