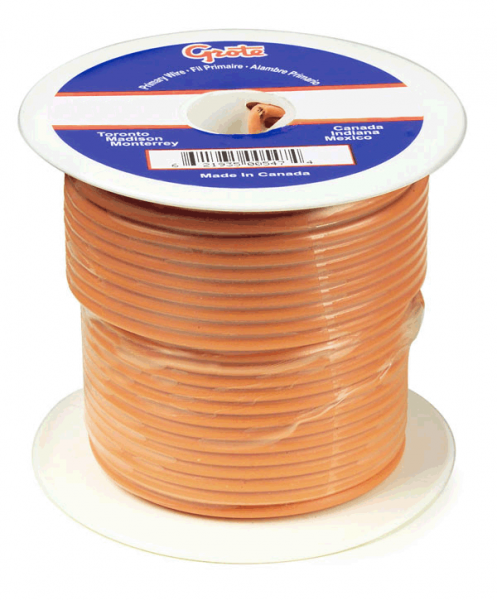

(GPT) General Purpose Thermoplastic Wire

Grote offers 100% pure copper General Purpose Thermoplastic Wire. Available in over 9 colors, on spools ranging from 25' to 1,000', and in a variety of gauges including 6, 8,10,12, 14, 16, 18, 20 and 22.
Grote spinner logo

87-7512Length 500', Orange

87-7512Length 500', Orange

  • General Purpose Thermo Plastic Wire, Primary Wire Length 1000', 14 Gauge thumbnail
  • wirespools thumbnail
View all products in this family
Technical specifications
  • Color: Orange
  • Length: 500'
  • Voltage: Rated to 60 V
  • Pack Quantity: 1
  • Gauge: 14 GA
  • Standards: SAE J1128
  • Outside Diameter: 0.113"
  • Strand: 19
  • Insulation/Protection: PVC
  • Material: 100% Copper
  • Product Type: Plastic Wire
  • Package Type: Spool
  • Style: GPT
  • Operating Temperature: -40°F (-40°C) to 221°F (105°C)
  • Warranty: 1 Year

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Orange
  • Length: 500'
  • Voltage: Rated to 60 V
  • Pack Quantity: 1
  • Gauge: 14 GA
  • Standards: SAE J1128
  • Outside Diameter: 0.113"
  • Strand: 19
  • Insulation/Protection: PVC
  • Material: 100% Copper
  • Product Type: Plastic Wire
  • Package Type: Spool
  • Style: GPT
  • Operating Temperature: -40°F (-40°C) to 221°F (105°C)
  • Warranty: 1 Year
Features & benefits
  • Temperature rating -40°C (-40°F) to 80°C (176°F)
  • Available in 25', 100' spools, 1000' also available
  • Single conductor PVC jacket resists grease, oil, gasoline, acids & other abrasive materials
  • Meets SAE code J1128 specifications
  • Used for automotive, truck & marine applications
